PTFE Screw 컨넥타, 내약품/내열성용, Screw-연결식, 단단한 튜빙/호스 사용
PTFE Tubing Conncetor, Screw Locking systems |
|
가격 : 견적가
제조사 : COWIE
모델선택 : 총 (22)개의 모델이 등록되어 있습니다.
|
|
|
 |
Connector with SCREW LOCKING are for use with rigid or semi-rigid tubing in glass, PTFE, or FEP to give a system which will withstand vacuum (10-1 mmHg) and pressure (4 Bar).
* 구성 : PTFE(Wettde Part), Polypropylene(Lock Nut), VITON(Grip)
* Vacuum(10-1mmHg), Pressure(4 Bar)
* -200℃ +280℃ 내열.
* Steel, Glass, PTFE, FEP튜브 등 단단한 Tube에 적합.
(1) Straight Bore-type Connectors, PTFE, 일자형 연결관
CW.016.1402.6.2 Connector, PTFE, Straight, Tube od 6 mm, Bore 2 mm
CW.016.1403.2 Connector, PTFE, Straight, Tube od 8 mm, Bore 3 mm
CW.016.1404.2 Connector, PTFE, Straight, Tube od 8 mm, Bore 4 mm
CW.016.1406.12.2 Connector, PTFE, Straight, Tube od 12 mm, Bore 6 mm
CW.016.1408.2 Connector, PTFE, Straight, Tube od 14 mm, Bore 8 mm
CW.016.1410.2 Connector, PTFE, Straight, Tube od 14 mm, Bore 10 mm
(2) Right Angle-type Connectors, PTFE,“ㄱ”자형 연결관
CW.016.1502.6.2 Connector, PTFE, “ㄱ”자형, Tube od 6 mm, Bore 2 mm
CW.016.1503.2 Connector, PTFE, “ㄱ”자형, Tube od 8 mm, Bore 3 mm
CW.016.1504.2 Connector, PTFE, “ㄱ”자형, Tube od 8 mm, Bore 4 mm
CW.016.1506.12.2 Connector, PTFE, “ㄱ”자형, Tube od 12 mm, Bore 6 mm
CW.016.1508.2 Connector, PTFE, “ㄱ”자형, Tube od 14 mm, Bore 8 mm
CW.016.1510.2 Connector, PTFE, “ㄱ”자형, Tube od 14 mm, Bore 10 mm

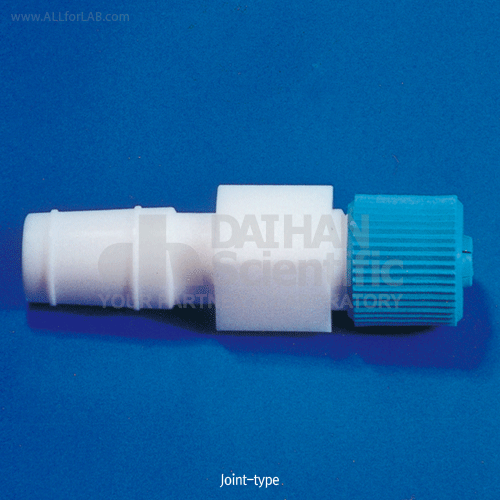

(3) PTFE Connectors, Joint-type, 조인트 연결관
CW.016.1901.2 Connector, Joint, Tube Φ8 mm, 14
CW.016.1902.2 Connector, Joint, Tube Φ8 mm, 19

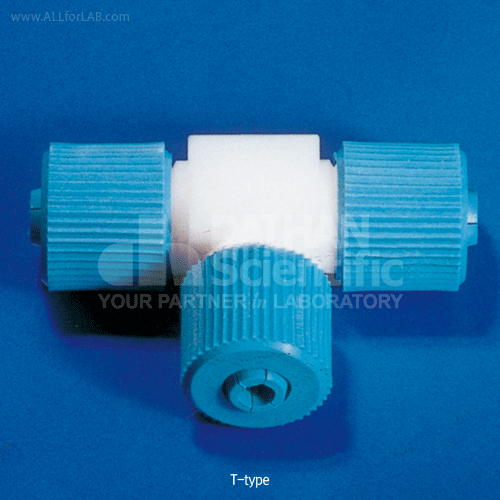

(4) PTFE Connectors,“ T”-Type,“ T”자형 연결관
CW.016.1602.6.2 Connector, PTFE, T-type, Tube od 6 mm, Bore 2 mm
CW.016.1603.2 Connector, PTFE, T-type, Tube od 8 mm, Bore 3 mm
CW.016.1604.2 Connector, PTFE, T-type, Tube od 8 mm, Bore 4 mm
CW.016.1606.12.2 Connector, PTFE, T-type, Tube od 12 mm, Bore 6 mm
CW.016.1608.2 Connector, PTFE, T-type, Tube od 14 mm, Bore 8 mm
CW.016.1610.2 Connector, PTFE, T-type, Tube od 14 mm, Bore 10 mm
(5) PTFE Connectors, Reduction Adapter, 연결 아답타
직경이 각기 다른 튜빙을 서로 연결하는 콘넥타
CW.016.1801.2 Connector, Reduction, Tube Φ6 mm to Φ8 mm
CW.016.1802.2 Connector, Reduction, Tube Φ8 mm to Φ14 mm |
 |
|
|
|
