실험기자재(초자류) A~K 홈 > 제품정보 > 실험기자재(초자류) A~K > Connection : 연결기구 > Tubing Connector : 튜빙 컨넥터

PTFE 튜빙 컨넥타, 내약품성/내열성/내구성용, -200℃ +280℃ 내열

PTFE Tubing Connectors, Bayonet Fitting systems, Autoclavable

가격 : 견적가
제조사 : COWIE

모델선택 : 총 (32)개의 모델이 등록되어 있습니다.
전체모델 및 사양보기
목록보기
제품상세설명
 Connectors with BAYONET fittings are for use with flexible tubing in PTFE, VITON, silicone rubber or similar materials.

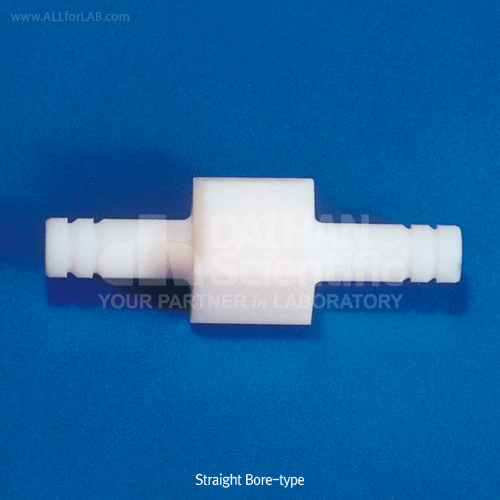

(1) Straight Bore-type Connectors, PTFE, 일자형 연결관
CW.016.902.5.2 Connector, PTFE, Straight, Arm Φ4.5 mm, Bore 2 mm
CW.016.902.2 Connector, PTFE, Straight, Arm Φ6.0 mm, Bore 2 mm
CW.016.903.7.2 Connector, PTFE, Straight, Arm Φ6.8 mm, Bore 3 mm
CW.016.903.2 Connector, PTFE, Straight, Arm Φ8.0 mm, Bore 3 mm
CW.016.904.9.2 Connector, PTFE, Straight, Arm Φ9.0 mm, Bore 4 mm
CW.016.904.2 Connector, PTFE, Straight, Arm Φ10.0 mm, Bore 4 mm
CW.016.905.2 Connector, PTFE, Straight, Arm Φ11.0 mm, Bore 5 mm

(2) Right Angle-type Connectors, PTFE, “ㄱ”자형 연결관
CW.016.1002.5.2 Connector, PTFE, Right, Arm Φ4.5 mm, Bore 2 mm
CW.016.1002.2 Connector, PTFE, Right, Arm Φ6.0 mm, Bore 2 mm
CW.016.1003.7.2 Connector, PTFE, Right, Arm Φ6.8 mm, Bore 3 mm
CW.016.1003.2 Connector, PTFE, Right, Arm Φ8.0 mm, Bore 3 mm
CW.016.1004.9.2 Connector, PTFE, Right, Arm Φ9.0 mm, Bore 4 mm
CW.016.1004.2 Connector, PTFE, Right, Arm Φ10.0 mm, Bore 4 mm
CW.016.1005.2 Connector, PTFE, Right, Arm Φ11.0 mm, Bore 5 mm

(3) Joint-type Connectors, PTFE, 조인트 연결관
CW.016.2201.2 Connector, PTFE, Tube Φ8 mm, ST Joint 14
CW.016.2202.2 Connector, PTFE, Tube Φ10 mm, ST Joint 19

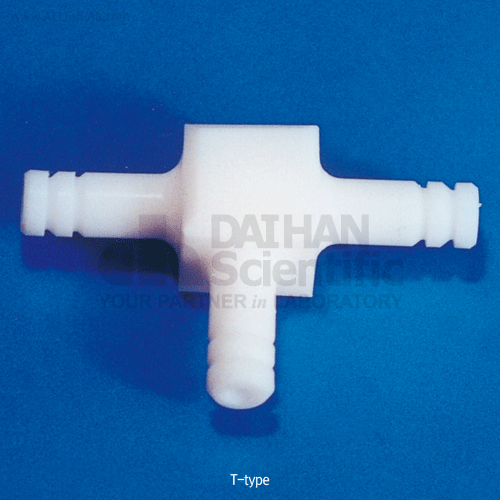

(4)“ T”-type Connectors, PTFE,“ T”자형 연결관
CW.016.1102.5.2 Connector, PTFE, T-type, Arm Φ4.5 mm, Bore 2 mm
CW.016.1102.2 Connector, PTFE, T-type, Arm Φ6.0 mm, Bore 2 mm
CW.016.1103.7.2 Connector, PTFE, T-type, Arm Φ6.8 mm, Bore 3 mm
CW.016.1103.2 Connector, PTFE, T-type, Arm Φ8.0 mm, Bore 3 mm
CW.016.1104.9.2 Connector, PTFE, T-type, Arm Φ9.0 mm, Bore 4 mm
CW.016.1104.2 Connector, PTFE, T-type, Arm Φ10.0 mm, Bore 4 mm
CW.016.1105.2 Connector, PTFE, T-type, Arm Φ11.0 mm, Bore 5 mm

(5) 4 Way-type Connectors, PTFE, 십자(+)형 연결관
CW.016.1112.5.2 Connector, PTFE, 4 Way, Arm Φ4.5 mm, Bore 2 mm
CW.016.1112.2 Connector, PTFE, 4 Way, Arm Φ6.0 mm, Bore 2 mm
CW.016.1113.7.2 Connector, PTFE, 4 Way, Arm Φ6.8 mm, Bore 3 mm
CW.016.1113.2 Connector, PTFE, 4 Way, Arm Φ8.0 mm, Bore 3 mm
CW.016.1114.9.2 Connector, PTFE, 4 Way, Arm Φ9.0 mm, Bore 4 mm
CW.016.1114.2 Connector, PTFE, 4 Way, Arm Φ10.0 mm, Bore 4 mm
CW.016.1115.2 Connector, PTFE, 4 Way, Arm Φ11.0 mm, Bore 5 mm
모델 및 사양
Cat. No. 모델명 단 위 가 격 수량 선 택
CW.016.1002.2 Connect, ptfe, right angle b2, 1/Ea. 견적가 견적문의
CW.016.1002.5.2 Connect, ptfe, right angle arm 4.5, b2, 1/Ea. 견적가 견적문의
CW.016.1003.2 Connect, ptfe, right angle arm 8, b3, 1/Ea. 견적가 견적문의
CW.016.1003.7.2 Connect, ptfe, right angle arm 6.8, b3, 1/Ea. 견적가 견적문의
CW.016.1004.2 Connect, ptfe, right angle arm 10, b4, 1/Ea. 견적가 견적문의
CW.016.1004.9.2 Connect, ptfe, right angle arm 9, b4, 1/Ea. 견적가 견적문의
CW.016.1005.2 Connect, ptfe, right angle arm 11, b5, 1/Ea. 견적가 견적문의
CW.016.1102.2 (구 no. 016.1102) connect, ptfe t-type, arm 6, b2, 1/Ea. 견적가 견적문의
CW.016.1102.5.2 Connect, ptfe t-type, arm 4.5, b2, 1/Ea. 견적가 견적문의
CW.016.1103.2 Connect, ptfe t-type, arm 8, b3, 1/Ea. 견적가 견적문의
CW.016.1103.7.2 Connect, ptfe t-type, arm 6.8, b3, 1/Ea. 견적가 견적문의
CW.016.1104.2 (구 no. 016.1104) connect, ptfe t-type, arm 10, b4, 1/Ea. 견적가 견적문의
CW.016.1104.9.2 Connect, ptfe t-type, arm 9, b4, 1/Ea. 견적가 견적문의
CW.016.1105.2 Connect, ptfe t-type, arm 11, b5, 1/Ea. 견적가 견적문의
CW.016.1112.2 Connect, ptfe 4-way, arm 6, b2, 1/Ea. 견적가 견적문의
CW.016.1112.5.2 Connect, ptfe 4-way, arm 4.5, b2, 1/Ea. 견적가 견적문의
CW.016.1113.2 Connect, ptfe 4-way, arm 8, b3, 1/Ea. 견적가 견적문의
CW.016.1113.7.2 Connect, ptfe 4-way, arm 6.8, b3, 1/Ea. 견적가 견적문의
CW.016.1114.2 Connect, ptfe 4-way, arm10, b4, 1/Ea. 견적가 견적문의
CW.016.1114.9.2 Connect, ptfe 4-way, arm 9, b4, 1/Ea. 견적가 견적문의
CW.016.1115.2 Connect, ptfe 4-way, arm 11, b5, 1/Ea. 견적가 견적문의
CW.016.2101.2 Connect, ptfe reduction adapter, arm 6~8, 1/Ea. 견적가 견적문의
CW.016.2102.2 Connect, ptfe reduction adapter, arm 8~10, 1/Ea. 견적가 견적문의
CW.016.2201.2 (구 no. 016.2201) connect, ptfe joint, bore ns14, 1/Ea. 견적가 견적문의
CW.016.2202.2 Connect, ptfe joint, bore ns19, 1/Ea. 견적가 견적문의
CW.016.902.2 Connect, ptfe straight through, arm 6, b2, 1/Ea. 견적가 견적문의
CW.016.902.5.2 Connect, ptfe straight through, arm 4.5, b2, 1/Ea. 견적가 견적문의
CW.016.903.2 Connect, ptfe straight through, arm 8, b3, 1/Ea. 견적가 견적문의
CW.016.903.7.2 Connect, ptfe straight through, arm 6.8, b3, 1/Ea. 견적가 견적문의
CW.016.904.2 Connect, ptfe straight through, arm 10, b4, 1/Ea. 견적가 견적문의
CW.016.904.9.2 Connect, ptfe straight through, arm 9, b4, 1/Ea. 견적가 견적문의
CW.016.905.2 Connect, ptfe straight through, arm11, b5, 1/Ea. 견적가 견적문의
