* Origin : Made in USA (미국)
* NuAire Quality Statements (품질 보장 인증) :
ISO 9001:2000 Certificate (품질경영시스템 국제규격 인증)
ISO 13485 Certificate (의료기기 인증)
* Extra Large (75.7Liter) Water-jacket
* Programmable Microcontroller Dependability
* Closed Loop HEPA Filtration System
Application/사용분야
* 모든 세포 및 조직 배양 관련 연구
* Storage and Preservation of Embryos, Gametes and Animal Tissue Cell Cultures at on near body Temperature.
* in vitro Fertilization, Genetic Disease, Cancer Research etc.
* Microbial Organism (Mycoplasma, Chlamydia etc.) Control
Features/특징
* Extra Large (75.7Liter) Water-jacket : 열 보존력을 높여 챔버 내의 온도 균일성을 높임
* Programmable Microcontroller Dependability : 빠르고, 정확하고, 조화로운조절을통해인큐베이터의 모든 파라미터를조절한다. - Chamber Temperature, CO2, Humidity and Door
* Closed Loop HEPA Filtration System : 30분에 1회 recirculation을 하여 챔버 내 오염을 최소화함
* 대형 워터 자켓 내부 물의 순환으로 챔버 내 온도의 균일도 높임
* 청소 및 소독이 용이하도록 챔버 내부의 모서리가 곡선으로 되어 있고, 선반 걸이의 탈,부착이 용이 습도유지를 위한대형 Stainless steel Water Pan을레일가드에장착하여증류수의확인 및 보충이 매우 용이
* The Large Water-jacket(75.7 liters) surrounding the Inner Chamber permits the Water to Circulate within the Jacket, producing a Temperature Uniformity of ±0.2℃

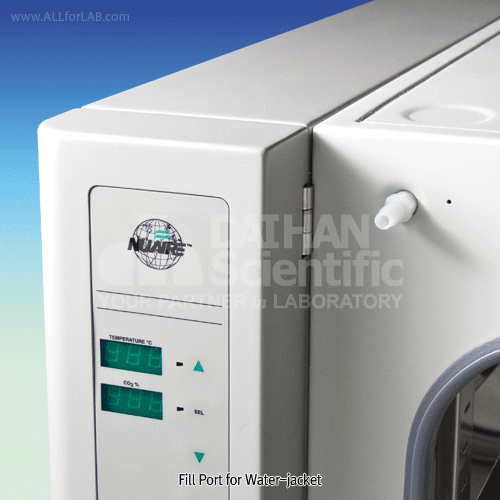

* Fill Port on Front of Chamber for Optimal Water Levels
* Low Water Level Warning

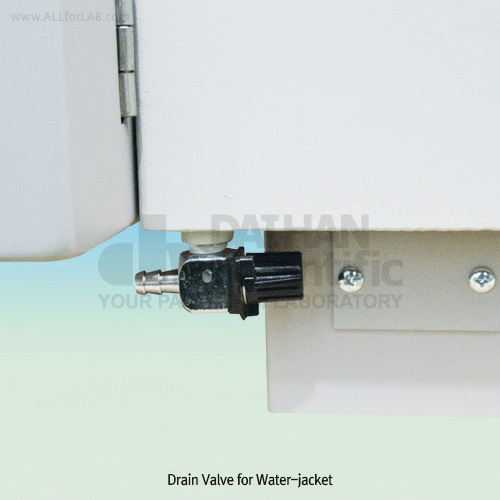

* A Drain Valve is located on Bottom front of Chamber
* Closed Loop HEPA Filter System is Designed to Minimize Contamination at a Recirculation Rate of 1 Chamber Volume Change Every 30 Minutes
* Manually Adjustable out Front Door Heater is Duty Cycle Controlled to Reduce Condensation within the Chamber
* Relative Humidity Level up to 95% is Achieved in the Incubator by the use of a Stainless steel Pan filled with Distilled Water and Placed in Rail Guides just above the Bottom of the Chamber
* The Interior Corners of the Growth Chamber are Coved for Ease of Cleaning and to prevent Contaminants from becoming Trapped

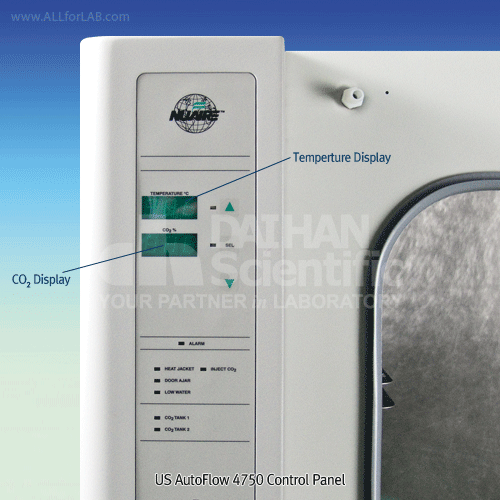

Clear and Complete Information
* Chamber Temperature, Set and Actual Point
* CO2 Level, Set and Actual Point
* Output and Alarm Status
* Water Jacket, Low Water Level Warning
* Chamber Door Ajar
* CO2 Infusion Status
* Tank Status
* System Alarm Condition Status
Incubator Blower Fan & HEPA Filter
* A Continuous Operating Fan Motor drives a Blower Wheel within the Upper Air Plenum and Side Wall Duct System.
* Air is Constantly Re-Circulating within the Chamber keeping every Cubic Inch of Volume at a Uniform Temperature. This Airflow is distributed Uniformly and at very low Velocity, so as not to Influence Culture Growth.
* A large replaceable HEPA filter cartridge continually filters the air that circulates in the chamber.
Ordering Information

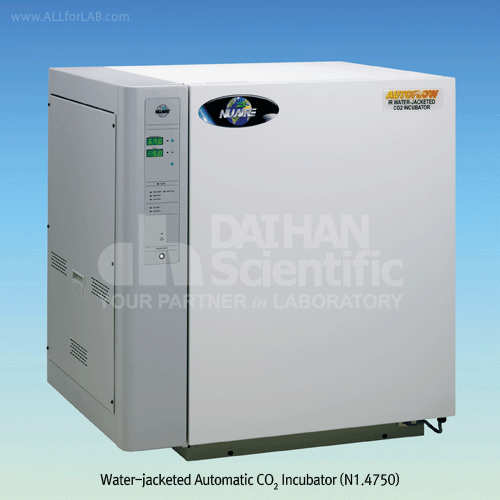

N1.4750 CO2 Incubators, Water-jacketed, US AutoFlow 4750, 188L
Necessary Accessories
H11.896.10MC Regulator, 2-Stage no.896, CO2, Capacity : 36m3/hr
※ 위 제품은 운임비 착불전용상품입니다.
|
|
|
홈 > 제품정보 > 실험기자재(초자류) A~K > Incubator : 배양기/인큐베이타 > CO2Incubator : CO2 인큐베이터
전자동 CO2 인큐베이터, 워터 자켓
