WiseStir(R)MSH-50D Digital Compact Hotplate Stirrer, Round-Type Plate, Φ135㎜ |
|
가격 : 견적가
제조사 : DAIHAN
모델선택 : 총 (8)개의 모델이 등록되어 있습니다.
|
|
|
 |
* Digital Feedback Control by High-Performance Microprocessor
* Ceramic Coated Plate (MSH-50D) for Chemical/Acid Resistance or
Anodized Plate (MSH-55D) for Scratch Prevention
* Patented Jog-Shuttle Control System
* CE Certified
* “PL(Product Liability) Insurance”
: One Hundred Million/Korean Won(＼) for Each of Human and an Object
Application & Features
* Digital Feedback Control by High-Performance Microprocessor
* Superior Temperature Uniformity : 10% less on the Plate at Ambient Temperature
* Accurate Temp. Control of the Sample in the Vessel Using Optional PT100 Sensor
* User’s Self -Compensation Function :
To Control Difference between Real Temp. and Indicated Temp. (±10.0℃)
* Digital LCD Display with Back-Light Function
* Ceramic Coated Plate (MSH-50D) for Chemical/Acid Resistance or Anodized Plate (MSH-55D)
for Scratch Prevention
* Aluminum Die - Casting Body
* Storage Function : Timer & Alarm
* Locking Mode Supported for Experimental Safety (Input to Jog-Shuttle can be Disabled)
* Patented Jog-Shuttle Control System
* CE Certified
* “PL(Product Liability) Insurance”
: One Hundred Million/Korean Won(＼) for Each of Human and an Object
Specification
Ordering Information
MSH-50D Hotplate Stirrer Unit & Package Set
DH.WMH03050 Digital Hotplate Stirrer, MSH-50D-Unit, Ceramic-Coated, Φ135mm, 80~1500 rpm, to 380℃

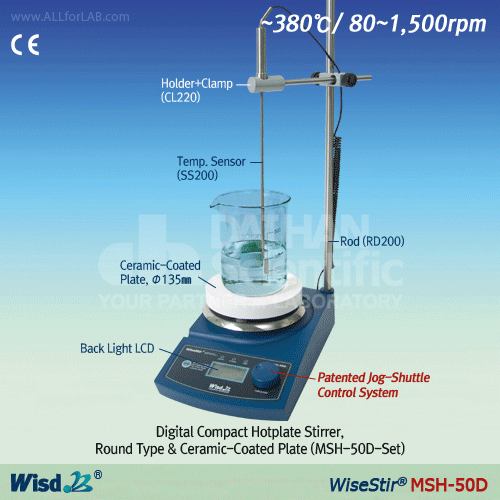

DH.WMH03051 Digital Hotplate Stirrer Package, MSH-50D-Set, with SS200 External Temp. Sensor, RD200 Support Rod and CL220 Clamp
Packing Dimension w400×d280×h200 mm, Gross Weight 4kg
MSH-55D Hotplate Stirrer Unit & Package Set

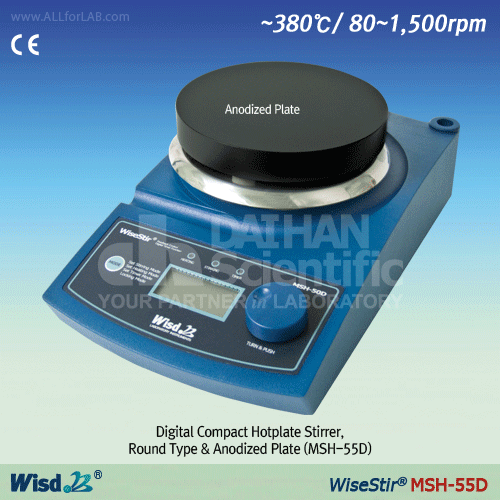

DH.WMH03055 Digital Hotplate Stirrer, MSH-55D-Unit, Anodized, Φ135mm, 80~1500 rpm, to 380℃
DH.WMH03056 Digital Hotplate Stirrer Package, MSH-55D-Set, with SS200 External Temp. Sensor, RD200 Support Rod and CL220 Clamp
Packing Dimension w400×d280×h200 mm, Gross Weight 4kg

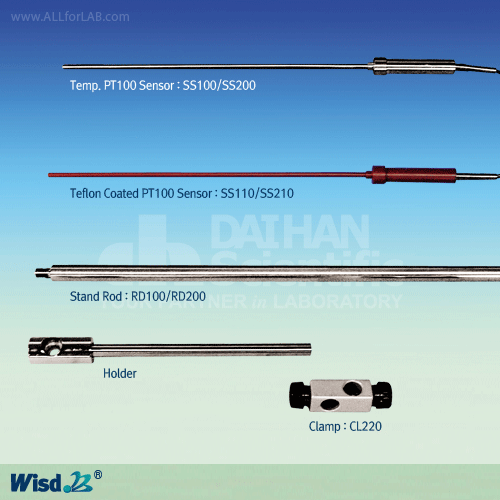

Additional Function Accessories
DH.WHP503030 Direct Contact Temperature Sensor, SS200, PT100*, for HP-20D, MSH-20D and MSH-50D/55D
DH.WHP503031 Direct Contact Temperature Sensor, SS210, PT100*, Teflon Coated, for HP-20D, MSH-20D and MSH-50D/55D
DH.WHP503036 Stand Rod, RD200, Stainless Steel, Φ12×L450mm, for HP-20A/20D, MSH-20A/20D, MSH-50A/55A, MSH-50D/55D and SMHS
DH.WHP503012 Holder+Clamp, CL220, for Temp. Sensor
* PT100 : External Sensor for Feedback Control of the Temperature in the Vessel, Accuracy of ±0.3℃
|
 |
|
|
|
