* Suitable for Drying, Baking, Conditioning, Curing, Out-Gassing Solids and
Liquids, Vacuum Embedding, Moisture Testing, Plating and Aging Test
* Very Easy and Convenient for Vacuuming and Venting,
Easy to read Vacuum Gauge
* Highly Safety Viewing Window
(Tempered Safety Glass+ Polycarbonate Window)
* Patented Jog-Shuttle Control System and Back-Light LCD Display
* UL Certified
* CE Certified
* ¡°PL(Product Liability) Insurance¡±
   : One Hundred Million/Korean Won(£Ü) for Each of Human and an Object

Application & Features
* Suitable for Drying, Baking, Conditioning, Curing, Out-Gassing Solids and Liquids,
   Vacuum Embedding, Moisture Testing, Plating and Aging Test
* Digital Fuzzy Control System Implementing Superior Temperature Accuracy

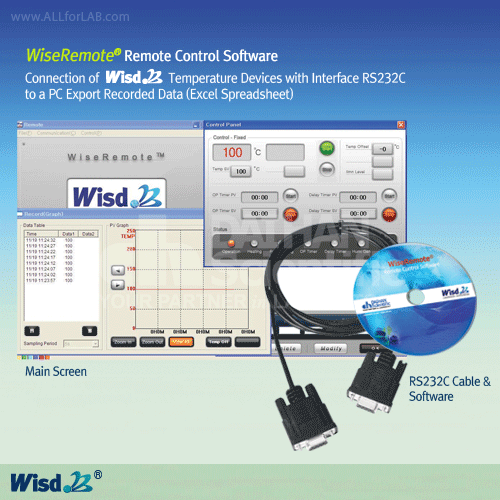

* RS232C Interface for Remote Monitoring and Controlling with PC
* Superior Uniformity and Stability
* Very Easy and Convenient for Vacuuming and Venting, Easy to read Vacuum Gauge
* High Quality Door Sealing : High Temperature Grade Silicone Molded Gasket
* Highly Safety Viewing Window (Tempered Safety Glass+ Polycarbonate Window)
* Over Temperature & Over Current Protection and Sensor Error Detection
* Storage Function : Alarm & Timer
* Locking Mode Supported for Experimental Safety (Input to Jog-Shuttle can be disabled)
* Patented Jog-Shuttle Control System and Back-Light LCD Display
* UL Certified
* CE Certified
* ¡°PL(Product Liability) Insurance¡±
   : One Hundred Million/Korean Won(£Ü) for Each of Human and an Object

Specification
¡Ø ÀÚ¼¼ÇÑ »çÇ×Àº PDFÆÄÀÏ ÂüÁ¶ÇϽñ⠹ٶø´Ï´Ù.

Ordering Information

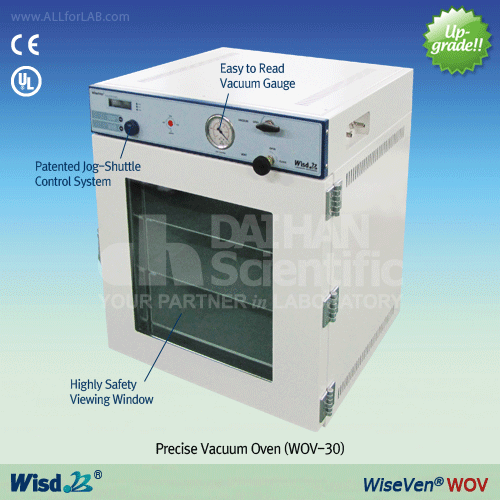

DH.WOV01030   Vacuum Oven, WOV-30, 30 Lit., Ambient +5¡É~200¡É
DH.WOV01070   Vacuum Oven, WOV-70, 69 Lit., Ambient +5¡É~200¡É

                                Spare Accessories

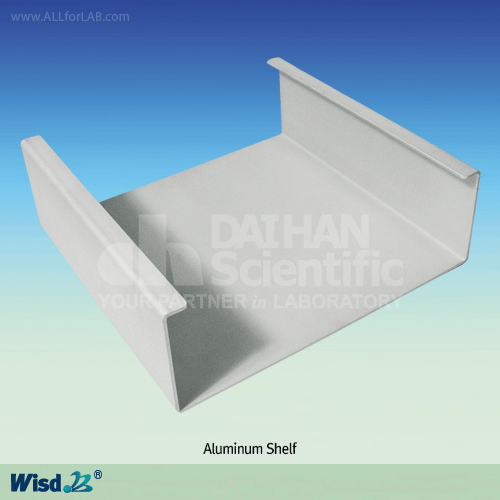

DH.WOV11030   Shelf, Aluminum, OVS030, for WOV-30, w295¡¿d285¡¿h98mm
DH.WOV11070   Shelf, Aluminum, OVS070, for WOV-70, w395¡¿d395¡¿h130mm
                               Validation (IQ, OQ) Service
DH.WOV31030   Validation Service(IQ, OQ), OVV030, for WOV-30
DH.WOV31070   Validation Service(IQ, OQ), OVV070, for WOV-70

¡Ø DAIHAN Recommendation : Combination of the Vacuum Oven(WOV)
  with the Cold Trap Bath and the Vacuum Pump

 * Suitable for Drying, Baking, Conditioning, Curing, Out-Gassing Solids and
Liquids, Vacuum Embedding, Moisture Testing, Plating and Aging Test
* Very Easy and Convenient for Vacuuming and Venting,
Easy to read Vacuum Gauge
* Highly Safety Viewing Window
(Tempered Safety Glass+ Polycarbonate Window)
* Patented Jog-Shuttle Control System and Back-Light LCD Display
* UL Certified
* CE Certified
* ¡°PL(Product Liability) Insurance¡±
   : One Hundred Million/Korean Won(£Ü) for Each of Human and an Object

Application & Features
* Suitable for Drying, Baking, Conditioning, Curing, Out-Gassing Solids and Liquids,
   Vacuum Embedding, Moisture Testing, Plating and Aging Test
* Digital Fuzzy Control System Implementing S
