강제 대류식 정밀건조기
Ovens, Horizontal-Flow, Forced-Air Type, 50-/105-/155-/305-Lit. |
|
가격 : 견적가
제조사 : DAIHAN
모델선택 : 총 (10)개의 모델이 등록되어 있습니다.
|
|
|
 |
* Digital Fuzzy Control System Implementing Superior Temperature Accuracy
* Optimized Air Flow by Forced Convection Mechanism
* Patented Jog-Shuttle Control System
* UL Certified
* CE Certified
* “PL(Product Liability) Insurance”
: One Hundred Million/Korean Won(￦) for Each of Human and an Object
Specification
Application & Features
* Suitable for Drying, Baking, Conditioning, Curing, Pre-Heating and Aging
* Digital Fuzzy Control System Implementing Superior Temperature Accuracy
* High-Quality LCD Display with Back-Light Function Used
* RS232C Interface for Remote Monitoring and Controlling with PC
* Ambient +5℃ to 250℃ Range with Accuracy of ±0.3℃

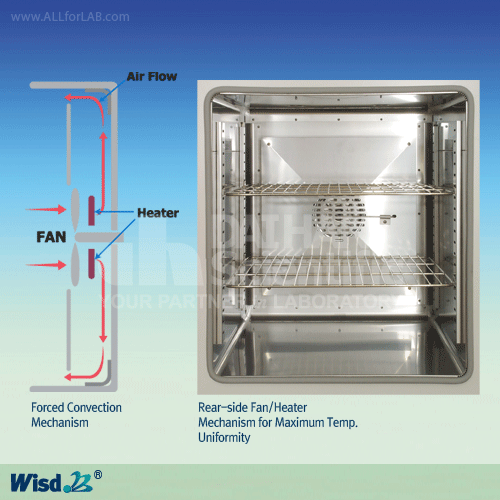

* Maximum Temp. Uniformity by Forced Convection : Rear-Side Fan/Heater Mechanism (±1% uniformity)
*Corrosion Resistant 304 Stainless Steel Chamber and Shelves
* Perfect Heat Insulation Made by Heat-Resistant Rubber Packing and Air Flow Layer(AFL).
* Over Temperature & Over Current Protector and Sensor Error Detector
* 2~3 Stainless Steel shelves are Included
* Patented Jog-Shuttle Control System
* UL Certified
* CE Certified
* “PL(Product Liability) Insurance”
: One Hundred Million/Korean Won(￦) for Each of Human and an Object
Ordering Information

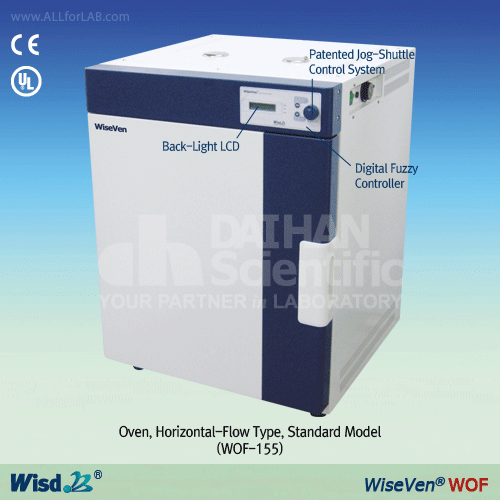

Standard Model
DH.WOF01050 Oven, Forced-Air Convection, Standard, WOF-50, 50 Lit.
DH.WOF02105 Oven, Forced-Air Convection, Standard, WOF-105, 105 Lit.
DH.WOF02155 Oven, Forced-Air Convection, Standard, WOF-155, 155 Lit.
DH.WOF02305 Oven, Forced-Air Convection, Standard, WOF-305, 305 Lit.
※Ambient ＋5~250℃, Digital Fuzzy Controller with Jog-Shuttle Switch

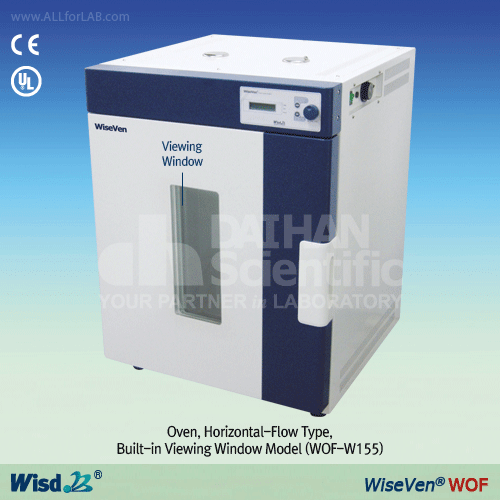

Built in Viewing Window Model
DH.WOF01105 Oven, Forced-Air Convection, Viewing Window, WOF-W105, 105 Lit.
DH.WOF01155 Oven, Forced-Air Convection, Viewing Window, WOF-W155, 155 Lit.
DH.WOF01305 Oven, Forced-Air Convection, Viewing Window, WOF-W305, 305 Lit.
※Viewing Window Ambient＋5~250℃, Digital Fuzzy Controller with Jog-Shuttle Switch
Spare Accessories
DH.WON11050 Wire Shelf, Stainless Steel, ONS050, for 50 Lit., w340 × d310mm
DH.WON11105 Wire Shelf, Stainless Steel, ONS105, for 105 Lit., w455 × d375mm
DH.WON11155 Wire Shelf, Stainless Steel, ONS155, for 155 Lit./305Lit., w520 × d440mm
Optional Accessories

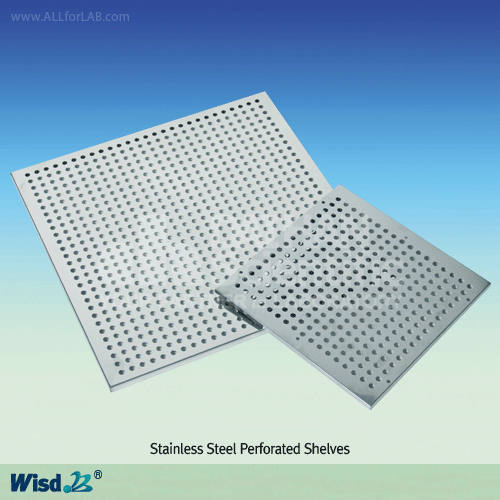

DH.WON21050 Perforated Shelf, Stainless Steel, ONPS050, for 50 Lit., w340 × d310mm
DH.WON21105 Perforated Shelf, Stainless Steel, ONPS105, for 105 Lit., w455 × d375mm
DH.WON21155 Perforated Shelf, Stainless Steel, ONPS155, for 155 Lit./305 Lit., w520 × d440mm
