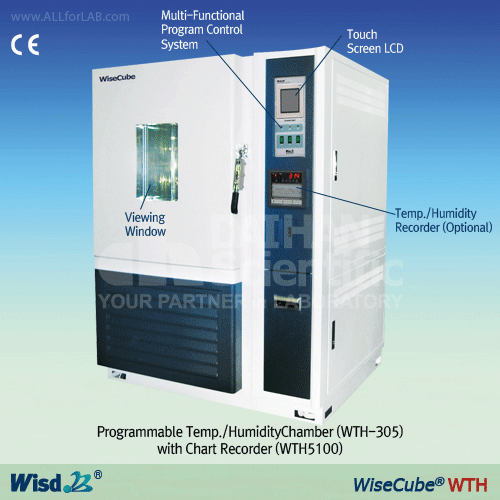

* Programmable Digital PID Controller with Touch-Screen LCD
* Program Capability: 120 Patterns 1200 Segments
* CFC Free Refrigerant (R404A)
* CE Certified
* ¡°PL(Product Liability) Insurance¡±
   : One Hundred Million/Korean Won(¡¬) for Each of Human and an Object

Specification

¡Ø ÀÚ¼¼ÇÑ »çÇ×Àº PDFÆÄÀÏ ÂüÁ¶ÇϽñ⠹ٶø´Ï´Ù.

Application & Features
* Programmable Digital PID controller with Touch-Screen LCD
* Program Capability : 120 Patterns 1200 Segments
* Auto-Tuning Function

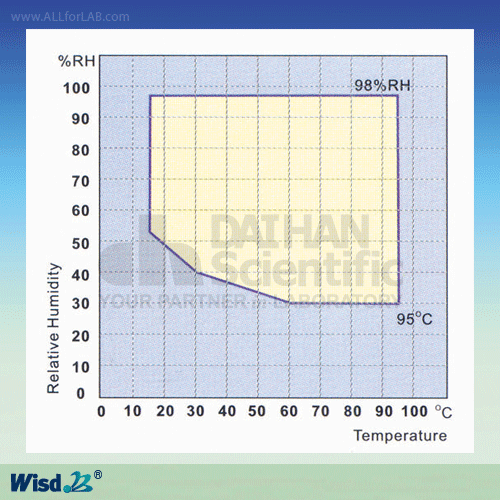

* Precise Temperature Control (-40¡É/-20¡É to 100¡É) and Humidity (30% to 98% Relative Humidity)
* Electronic Humidity Sensor has Excellent Response Time and Durability.
* The Powerful and Silent Dual Fan Motor Assures Temperature Uniformity by Strong Air Circulation(2 ~ 4pcs)
* CFC-Free Refrigerant (R404A)
* Low Water Level Alarm System
* Automatic Defrost Function
* Large Clear Viewing Window with Membrane Heating Element (Moisture-Proof)
* Sliding Water Supply Tank : Auto Water Supplementing System
* Easy and Safety Door Lock
* Over Temperature & Over Current Protection, Sensor Error Detection and Leakage Breaking
* RS232C Interface for Remote Monitoring and Controlling with PC (Standard)

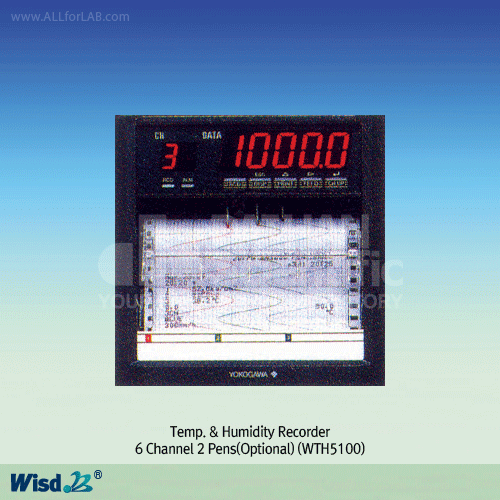

* Temperature & Humidity Recorder(6 Channels & 2 Pens) and RS485 Communication Interface (Optional)
* CE Certified
* ¡°PL(Product Liability) Insurance¡±
   : One Hundred Million/Korean Won(¡¬) for Each of Human and an Object

Ordering Information
DH.WTH01155 Temp. / Humidity Chamber, WTH-155, -20¡É to 100¡É, 155 Lit.
DH.WTH01305 Temp. / Humidity Chamber, WTH-305, -20¡É to 100¡É, 305 Lit.
DH.WTH01420 Temp. / Humidity Chamber, WTH-420, -20¡É to 100¡É, 420 Lit.
DH.WTH01800 Temp. / Humidity Chamber, WTH-800, -20¡É to 100¡É, 800 Lit.
DH.WTH02155 Temp. / Humidity Chamber, WTH-L155, -40¡É to 100¡É,155Lit
DH.WTH02305 Temp. / Humidity Chamber, WTH-L305, -40¡É to 100¡É,305Lit
DH.WTH02420 Temp. / Humidity Chamber, WTH-L420, -40¡É to 100¡É,420Lit
DH.WTH02800 Temp. / Humidity Chamber, WTH-L800, -40¡É to 100¡É,800Lit

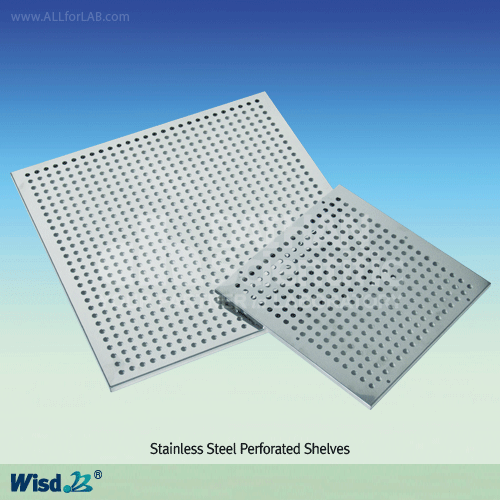

Spare Accessories
DH.WTH11155 Perforated Shelf, Stainless Steel, THS1155, for 155 Lit., w470¡¿d480mm
DH.WTH11305 Perforated Shelf, Stainless Steel, THS1305, for 305 Lit., w590¡¿d580mm
DH.WTH11420 Perforated Shelf, Stainless Steel, THS1420, for 420 Lit., w720¡¿d640mm
DH.WTH11800 Perforated Shelf, Stainless Steel, THS1800, for 800 Lit., w970¡¿d980mm

Optional Accessories
DH.WTH05100 Temperature & Humidity Recorder, WTH5100
DH.WTH05105 Chart Paper, WTH5105

Validation (IQ, OQ) Service
DH.WTH31155 Validation Service(IQ, OQ), THV1155, for WTH-155
DH.WTH31305 Validation Service(IQ, OQ), THV1305, for WTH-305
DH.WTH31420 Validation Service(IQ, OQ), THV1420, for WTH-420
DH.WTH31800 Validation Service(IQ, OQ), THV1800, for WTH-800
DH.WTH32155 Validation Service(IQ, OQ), THV2155, for WTH-L155
DH.WTH32305 Validation Service(IQ, OQ), THV2305, for WTH-L305
DH.WTH32420 Validation Service(IQ, OQ), THV2420, for WTH-L420
