WiseDoc(R)WGD-30 Unified Gel Documentation System, 1.5M Pixel |
|
가격 : 견적가
제조사 : DAIHAN
모델선택 : 총 (6)개의 모델이 등록되어 있습니다.
|
|
|
 |

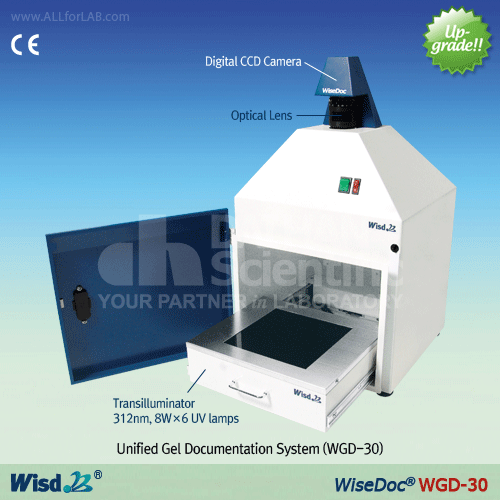

* Complete System with Digital CCD Camera, Safety Darkroom Hood and
in-built Transilluminator is Offered.
* High-Quality Optical Lens with Zoom, Focus and Iris Control is Used
* CE Certified
* “PL(Product Liability) Insurance”
: One Hundred Million/Korean Won(＼) for Each of Human and an Object
Application & Features
* Complete System with a Digital CCD Camera, Safety Darkroom Hood and in-built
Transilluminator is Offered.
* CE Certified
* Unified Darkroom System with in-built Sliding Transilluminator offers very High Safety in use.
* Transilluminator: 312nm, 8W×6 UV lamps (WUV-M20)
* External Dimension : 395×393×676.5mm
* Internal Dimension : 350×275×400mm
* Door Size : 343×257
* Weight : 19kg
* White Light : 2×Fluorescent lamp
* Power Consumption : 60 W
* Digital CCD Camera (Resolution 1.5 Million pixel)
* 1360×1024, 10-bit CCD, Avilable for 8-bit Gray Level Image Capturing

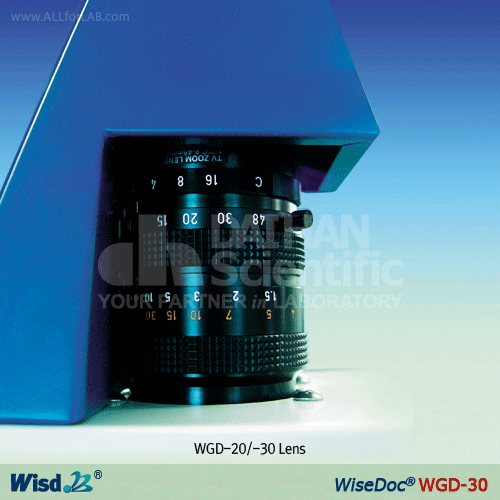

* High-Quality Optical Lens with Zoom, Focus and Iris Control (Manual Adjust) is used.
* USB 2.0 Interface is available, through which Real-time Images are Transferred Directly to PC.

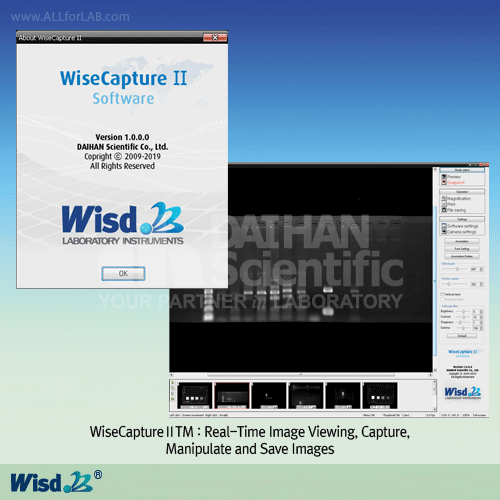

* WiseCaptureⅡTM Software : Easy and Fast Capture of Gel Image (Included)
* TotalLabTM Software : Fully Automatic, Single Button Press Complete Image Analysis
within Area of Interest
* “PL(Product Liability) Insurance”
: One Hundred Million/Korean Won(＼) for Each of Human and an Object
Specification
Ordering Information
DH.WGD00030 Gel Doc. System, WGD-30, with a Camera (1.5M Pixel), Darkroom Hood, in-built WUV-M20 Transilluminator and WiseCaptureⅡTM
DH.WGD00034 Gel Doc. System, WGD-30S, with a Camera (1.5M Pixel), Darkroom Hood, in-built WUV-M20 Transilluminator, WiseCaptureⅡTM and TotalLabTM Quant DNA Analysis S/W
Spare & Optional Accessories
DH.WGD00100 TotalLabTM Quant, DNA Analysis S/W
DH.WGD00120 Phoretix 1D, DNA Analysis S/W
DH.WGD00121 Phoretix 1D Pro, DNA Analysis S/W
DH.WGD00200 LapTop Computer, for WGD Gel Doc.System
DH.WUV01110 UV Lamp, UVM365 for WUV-M10, 365nm, 8W
DH.WUV02110 UV Lamp, UVM312 for WUV-M20, 312nm, 8W |
 |
|
|
|
