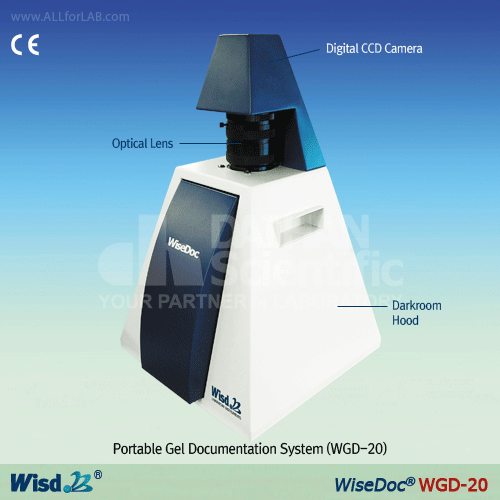

WiseDoc(R)WGD-20 Portable Gel Documentation System, 1.5M Pixel |
|
가격 : 견적가
제조사 : DAIHAN
모델선택 : 총 (9)개의 모델이 등록되어 있습니다.
|
|
|
 |
* The Most Cost-Effective System in the Market
* High Precise and Large Caliber Optical Lens with Zoom,
Focus and Iris Control are Used
* CE Certified
* “PL(Product Liability) Insurance”
: One Hundred Million/Korean Won(＼) for Each of Human and an Object
Application & Features
* The Most Cost-Effective System in the Market
* Digital CCD Camera (Resolution 1.5 Million pixel) with Portable Darkroom is Offered
* 1360×1024, 10-bit CCD, Avilable for 8-bit Gray Level Image Capturing
* External Dimension : 260×260×430
* Weight : 9kg
* Power Consumption : N/A
* CE Certified
* Very Compact Portable Darkroom System Enables the Existing Transilluminators in the Lab to be
used together with. High Flexibility in use is Offered
* High-Precision and Large Caliber Optical Lens with Zoom, Focus and Iris Control is used
* USB 2.0 Interface is Available, through which Real-Time Images are Transferred Directly to PC

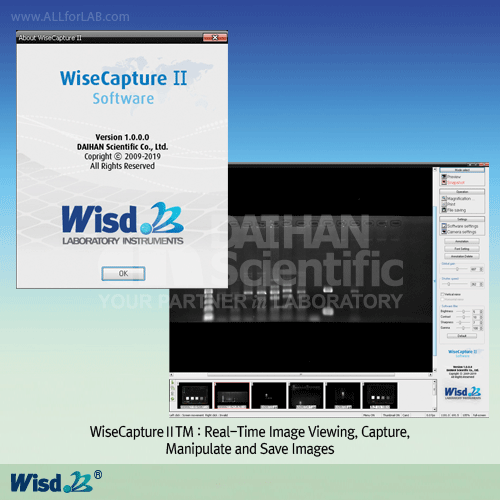

* WiseCaptureⅡTM Software : Easy and Fast Capture of Gel Image

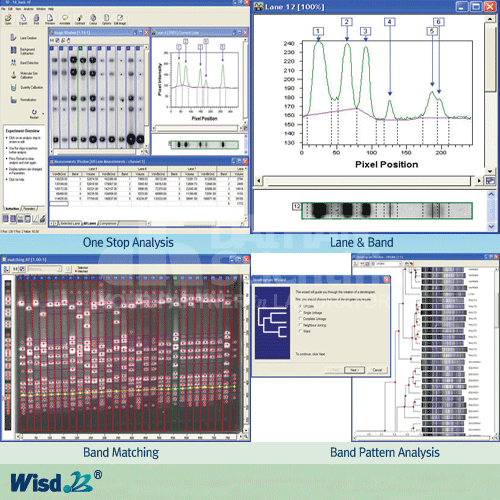

* TotalLabTM Software : Fully Automatic, Single Button Press Complete Image Analysis
within Area of Interest(Optional)
* “PL(Product Liability) Insurance”
: One Hundred Million/Korean Won(＼) for Each of Human and an Object
Specification
Ordering Information
DH.WGD00020 Gel Doc. System, WGD-20, with a Camera, Portable Darkroom Hood and WiseCaptureⅡTM
DH.WGD00024 Gel Doc. System, WGD-20S, with a Camera, Portable Darkroom Hood, TotalLabTM Quant, DNA Analysis S/W and WiseCaptureⅡTM
Spare & Optional Accessories
DH.WUV00020 Transilluminator, WUV-L20, 20×20cm Filter, 312nm, 15W×6ea
DH.WUV00050 Transilluminator, WUV-L50, 20×20cm Filter, 365nm＋312nm, 15W×6ea
DH.WUV00120 Transilluminator, WUV- M20, 20×20cm Filter, 312nm, 8W×6ea
DH.WGD00100 TotalLabTM Quant, DNA Analysis S/W
DH.WGD00120 Phoretix 1D, DNA Analysis S/W
DH.WGD00121 Phoretix 1D Pro, DNA Analysis S/W
DH.WGD00200 LapTop Computer for WGD Gel Doc.System, WGD-Laptop |
 |
|
|
|
