Standard Accessories for WiseStir(R) Overhead Stirrers

가격 : 견적가
제조사 : DAIHAN

모델선택 : 총 (22)개의 모델이 등록되어 있습니다.
전체모델 및 사양보기
목록보기
제품상세설명
“DAIHAN”Stirring Impeller for Overhead Stirrer, Stainless Steel #304

* Specially designed Stainless Steel #304 (High-grade) used
* Excellent Resistance of Acids, Chemicals, Corrosion and High Temperature.
* Universal-Types and Wide-Ranges

For Both High Speed and High Torque Models

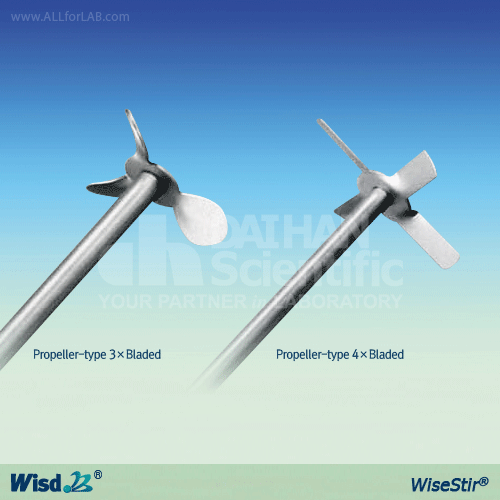

(1) Propeller-types, 3×Bladed, Rod Φ8×L500/650 mm, Blade Φ50/60/80/100 mm
DH.WOS501010 Impeller, PL010, #304, Φ8×L500mm Rod, Φ50mm Blade
DH.WOS501011 Impeller, PL011, #304, Φ8×L500mm Rod, Φ60mm Blade
DH.WOS501012 Impeller, PL012, #304, Φ8×L650mm Rod, Φ80mm Blade
DH.WOS501013 Impeller, PL013, #304, Φ8×L650mm Rod, Φ100mm Blade

(2) Propeller-types, 4×Bladed, Rod Φ8×L500/650 mm, Blade Φ70/90/100 mm
DH.WOS501015 Impeller, PL015, #304, Φ8×L500mm Rod, Φ70mm Blade
DH.WOS501016 Impeller, PL016, #304, Φ8×L650mm Rod, Φ90mm Blade
DH.WOS501017 Impeller, PL017, #304, Φ8×L650mm Rod, Φ100mm Blade

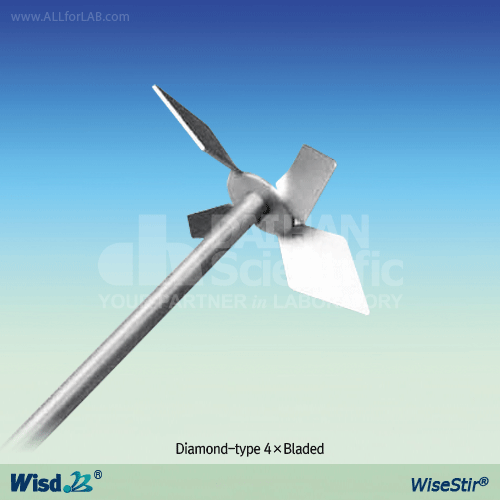

(3) Diamond-types, 4×Bladed, Rod Φ8×L500/650 mm, Blade Φ90/100 mm
DH.WOS501020 Impeller, PL020, #304, Φ8×L500mm Rod, Φ90mm Blade
DH.WOS501021 Impeller, PL021, #304, Φ8×L650mm Rod, Φ100mm Blade

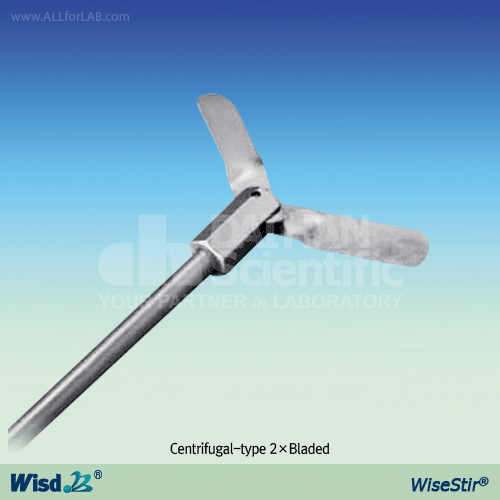

(4) Centrifugal-type, 2×Bladed, Rod Φ8×L500mm, Blade Φ100mm
DH.WOS501025 Impeller, PL025, #304, Φ8×L500mm Rod, Φ100mm Blade

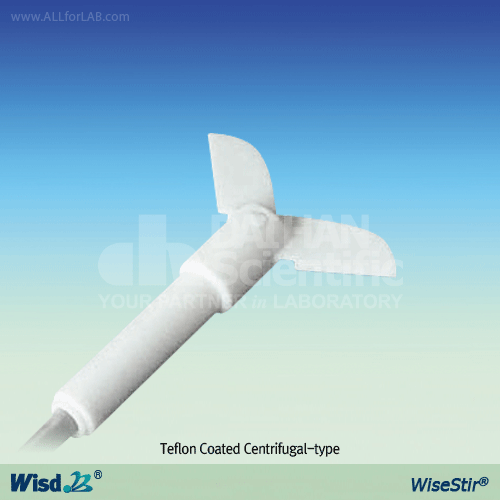

(5) Teflon Coated Centrifugal-type, 2×Bladed, Rod Φ8×L500/650mm, Blade Φ90/120mm
DH.WOS501030 Impeller, PL030, #304, Φ8×L500mm Rod, Φ90mm Blade
DH.WOS501031 Impeller, PL031, #304, Φ8×L650mm Rod, Φ120mm Blade

(6) Anchor-types, 2×Bladed, Rod Φ8×L500/650 mm, Blade Φ70/90 mm
DH.WOS501035 Impeller, PL035, #304, Φ8×L500 mm Rod, Φ70mm Blade
DH.WOS501036 Impeller, PL036, #304, Φ8×L650 mm Rod, Φ90mm Blade

For High Torque Models (HT-AX, HT-DX, HT-T)
(1) Propeller-types, 3×Bladed, Rod Φ10×L500/650/800 mm, Blade Φ60/80/100 mm
DH.WOS501111 Impeller, PL111, #304, Φ10×L500mm Rod, Φ60mm Blade
DH.WOS501112 Impeller, PL112, #304, Φ10×L650mm Rod, Φ80mm Blade
DH.WOS501113 Impeller, PL113, #304, Φ10×L650mm Rod, Φ100mm Blade

(2) Propeller-types, 4×Bladed, Rod Φ10×L650 mm, Blade Φ90/100 mm
DH.WOS501116 Impeller, PL116, #304, Φ10×L650mm Rod, Φ90mm Blade
DH.WOS501117 Impeller, PL117, #304, Φ10×L650mm Rod, Φ100mm Blade

(3) Diamond-types, 4×Bladed, Rod Φ10×L650 mm, Blade Φ100 mm
DH.WOS501121 Impeller, PL121, #304, Φ10×L650mm Rod, Φ100mm Blade

(6) Anchor-types, 2×Bladed, Rod Φ10×L650/800 mm, Blade Φ90/140 mm
DH.WOS501135 Impeller, PL135, #304, Φ10×L650 mm Rod, Φ90mm Blade
DH.WOS501136 Impeller, PL136, #304, Φ10×L800 mm Rod, Φ140mm Blade

※ Please Note!
   Rod or Blade of other Specifications are Available Upon Customer’s Request.
모델 및 사양
Cat. No. 모델명 단 위 가 격 수량 선 택
DH.WOS501010 Impeller, propeller, 3blade, Ø50mm , pl010, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501011 Impeller, propeller, 3blade, Ø60mm , pl011, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501012 Impeller, propeller, 3blade, Ø80mm , pl012, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501013 Impeller, propeller, 3blade, Ø100mm, pl013, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501015 Impeller, propeller, 4blade, Ø70mm , pl015, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501016 Impeller, propeller, 4blade, Ø90mm , pl016, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501017 Impeller, propeller, 4blade, Ø100mm, pl017, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501020 Impeller, diamond, 4blade, Ø90mm, pl020, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501021 Impeller, diamond, 4blade, Ø100mm, pl021, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501025 Impeller, centrifugal 2blade, Ø100 , pl025, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501030 Impeller, centrifugal, teflon, 2blade, Ø90, pl030, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501031 Impeller, centrifugal, teflon, 2blade, Ø120 , pl031, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501035 Impeller, anchor, 2blade, Ø70, pl035, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501036 Impeller, anchor, 2blade, Ø90, pl036, for hs/ht, 1/Ea. 견적가 견적문의
DH.WOS501111 Impeller, propeller, 3blade, Ø60mm , pl111, for ht, 1/Ea. 견적가 견적문의
DH.WOS501112 Impeller, propeller, 3blade, Ø80mm , pl112, for ht, 1/Ea. 견적가 견적문의
DH.WOS501113 Impeller, propeller, 3blade, Ø100mm, pl113, for ht, 1/Ea. 견적가 견적문의
DH.WOS501116 Impeller, propeller, 4blade, Ø90mm , pl116, for ht, 1/Ea. 견적가 견적문의
DH.WOS501117 Impeller, propeller, 4blade, Ø100mm, pl117, for ht, 1/Ea. 견적가 견적문의
DH.WOS501121 Impeller, diamond, 4blade, Ø100mm, pl121, for ht, 1/Ea. 견적가 견적문의
DH.WOS501135 Impeller, anchor, 2blade, Ø90, pl135, for ht, 1/Ea. 견적가 견적문의
DH.WOS501136 Impeller, anchor, 2blade, Ø140, pl136, for ht, 1/Ea. 견적가 견적문의
