Wheaton Tissue Grinders enable the cell culturist to primary cell from excised tissues, as
well as the preparation of subcellular components from harvested cell packs. Capacities
on the grinders range from 0.1 ml to 55 ml.

* 분쇄된 조직으로부터 기본적인 세포들을 손상없이 분리해 낼 수 있음.
* 0.1 m 부터 55 ml 까지의 다양한 용량

※Note: 1) 하기의 본문 설명/규격 중에 Chamber size( Φ×L mm)는 Glass Mortar의 Grinding
                  Chamber만의 Size임.
               2) 각 Tissue Grinders의 부품인 Glass Mortar이나 Pestle만도 각각 공급됨!

(1) Disposable Micro Tissue Grinder, 일회용 소형 Clear Glass, 0.75 ml
WH.357860 Tissue grinder, Mortar Size 10×50 mm

Micro Tissue grinders, 소량 시료용, Glass, 0.1 ml & 0.2 ml
Ideal for Delicate Hand Operation and Small Precise Work.

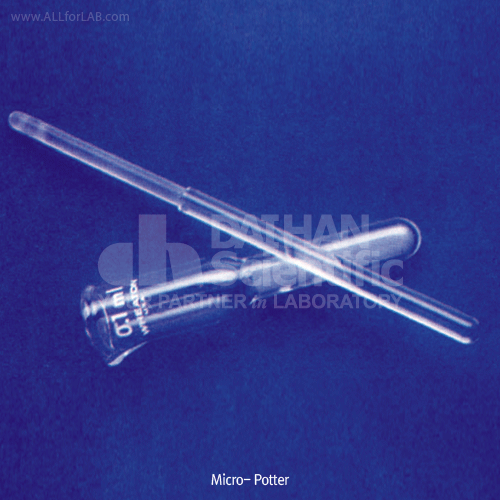

(2) Potter-Elvehjem type, with Reservoir & Pouring Lip, 0.1ml
* Clearance between Pestle and Tube : 0.1 to 0.5mm
WH.357844 Tissue Grinder, 0.1 ml, Chamber Φ4×L7.5 mm

(3) Tapered-type, with Teflon spacer, 0.2ml
* Finely Ground Glass Pestle & Tube.
* Tefron spacer aligns pestle and reduces aerosoling of products.
* Provided in Matched sets.
WH.357848 Tissue Grinder, 0.2 ml, Chamber Φ7×L33 mm,12 cm pestle

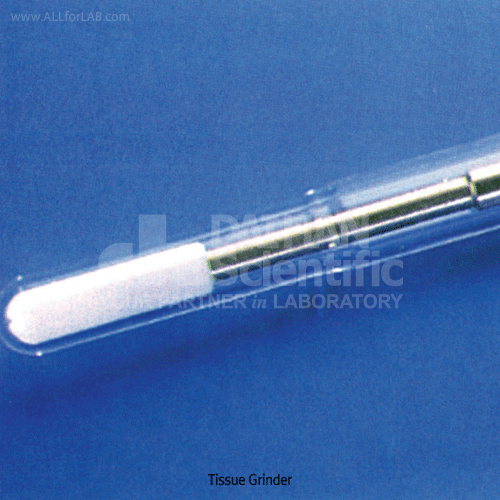

(4) Micro Tissue Grinder, 0.5 ml
with Teflon Pestle & Open top Screwcap
* PTFE/Silicone Lined Cap 13-425.
* Clearance between Pestle & Mortar, 0.05~0.15 mm.
* 스텐 Pestle Rod : 모타 Drive용에 적합.
WH.357535 Tissue grinder 0.5 ml, Chamber od 13×L37 mm
WH.357536 Spare motar and cap
WH.357537 Pestle, 스텐 Rod

(5) Tenbroeck Tissue Grinder, Glass, 1~40 ml
텐브럭^(R) 타입, with Handle
* Pestle and Tube : 0.09~0.16 mm Clearance
* Slow speed Motor Drive도 가능.
WH.357421 Tissue grinder, 1ml, Chamber Φ11× L 48 mm
WH.357422 Tissue grinder, 2ml, Chamber Φ11× L 50 mm
WH.357424 Tissue grinder, 7ml, Chamber Φ16× L 82 mm
WH.357426 Tissue grinder, 15ml, Chamber Φ20× L 94 mm
WH.357428 Tissue grinder, 40ml, Chamber Φ30×L140 mm

(6) Dounce Tissue Grinder, with 2 Pestle & Handle
다운스 티슈그라인더, 1~40 ml Glass
* Designed to retain a high percentage of all nuclei and mitochondria in soft tissues.
* Ideal for Enzyme studies.
* Ball pestle is reduced glass accumulation
* Large Reservoir Motar & Pouring Lip.
* 2×Pestle : 1) “A-Tight”Pestle(0.001”~0.003”Clearance)
                     2) “B-Loose”Pestle(0.0035”~0.0055”Clearance)
WH.357538 Tissue grinder, 1ml, Chamber Φ11× L 48 mm
WH.357542 Tissue grinder, 7ml, Chamber Φ13× L 82 mm
WH.357544 Tissue grinder, 15ml, Chamber Φ22× L 94 mm
WH.357546 Tissue grinder, 40ml, Chamber Φ32×L140 mm

Tapered Tissue Grinders
테파타입 티슈 그라인더, 1~15ml
Improved Design Incorporates a longer Tapered Surface on both the Mortar & Pestle.

(7) With Glass Pestle, 글라스 패슬 타입
* Useful of homogenizing Connective Tissue including Heart, Muscle & Lung, and Skin & Plant Tissue.
* Uniform 0.1~0.15mm Clearance between Pestle &
