* Designed to monitor the air temperature around the R2P Roller Apparatus
* Visual (on the display) and audible (loud buzzer) alarm

특징 (Features)
* 기기 주위의 온도를 모니터하여 설정 온도치를 벗어나면 Buzzer Alarm
* Alarm Indicator 규격
ㆍ Visual : Display reads“ Temp”
ㆍ Audible : Loud buzzer (On/Off setting)
ㆍ Remote signal : Dry contact closure (0.5A at 24VDC)
ㆍ Temperature sensor : Solid state, resolution 0.1℃, accuracy ±0.5℃

WH.W348890    Temperature Monitoring option
                            with one sensor
                         (반드시 R2P unit과 함께 주문)

Battery Backup Option

* Monitors the AC power and automatically switches between battery power and AC power as needed
* Consists of two long-life batteries, automatic charger system

* AC Power를 감지하여, Roller Apparatus를 Incubator나 Warm Room으로 이동시 순간적으로 AC 전원이
끊어졌을때나, AC Power를 사용 못할경우 이를 Battery 전원으로 자동으로 바꿔 최소 18시간동안 완벽한
배양기능을 유지함.
(단, Battery power mode에서는 Alarm과 Backlight Display기능은 불가능하며, Φ110mm vessel을 5 rpm으로
   Rolling시 18시간 지속가능.)
* System 재충전시간 (Recharge time) : 12 hours
* System 충전기의 특징 : 자동온도감지기능이 있어, Incubator의 온도가 올라가면 이에 알맞게 Charge
voltage를 맞춤.

WH.W348898    Battery Backup Option (반드시 R2P unit과 함께 주문)

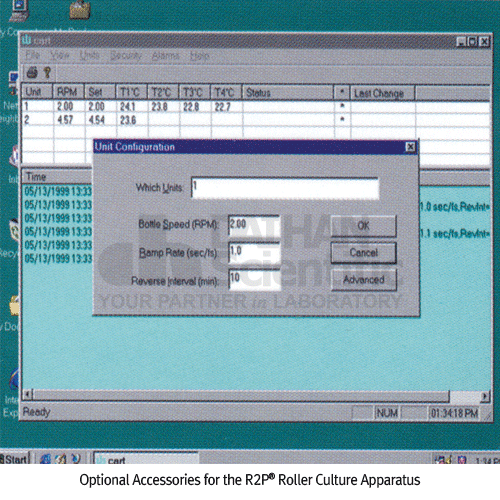

CART2 Control, Monitor, and Recording Option

* Remotely monitor and controls up to 2,047 R2P units
* Records all settings, changes and alarms
* Password protected user levels maintain security
* Windows based software

The CART2 Software is extremely user friendly allowing for easy remote programming of each individual R2P
unit to your specific production requirements. The software also continuously monitors all units for any
deviation in rotation speed, power loss, motor or belt failures, communication loss, and temparature deviation.
All changes and alarms are recorded in a “Log”file with the corresponding date and time. This option can be
easily added at any time. Attach the Network Interface or the Multiplexer Interface to an open serial port, load
the software on the computer, then connect your network cable to each R2P unit.

특징 (Features)
* Windows용 소프트웨어로 언제 어디서나 기존의 R2P unit에 손쉽게 추가 가능함.
* 원격조절식 Monitoring & Controlling System으로, 한대부터 최대 2,047대의 Unit을 개별적으로 정확하게
관리하도록 고안됨.

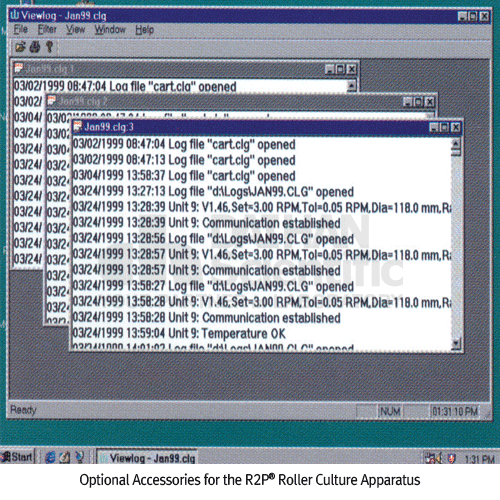

* 편리한“Log”화일 Viewing Program : 요청된“Log”화일을 Sorting, Viewing, Printing해줌.
* Computer Requirements :
   IBM Pentium PC or compatiable with :
ㆍ 32 MB of ram, minimum
ㆍ Microsoft Windows 95, 98, NT4.0 and above
ㆍ One free serial port
ㆍ 10 MB of free hard drive space, minimum
ㆍ Optional, sound card for audible alarms

주문 (Ordering)
WH.W348902.C    CART2 & View Log Software with Network Interface
                             * 255대까지 사용되는 Single Line Network adapter임.
WH.W348904.C   CART2 & View Log Software
