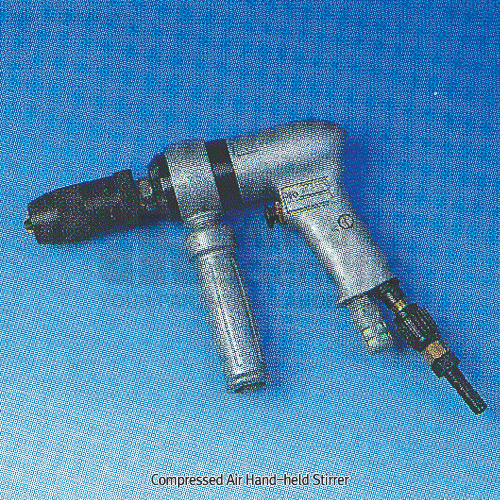

Compressed Air Hand-held Stirrer |
|
가격 : 견적가
제조사 : BUDDEBERG
모델선택 : 총 (22)개의 모델이 등록되어 있습니다.
|
|
|
 |
Basic model consisting of:
* Motor type PHR.
* Housing alu peen varnished.
* Chuck 3-12 mm capacity.
* Side Handle.
* Hose Nozzle Φ9 mm.
* Operating pressure max. 6 bar.
* Power output 440 W.
* Rotation Clockwise.
* Air consumption max. 600 ℓ/min.
* Stirring quantity max. 100ℓ. water.
* All data at 6 bar air pressure
주문 (Ordering)
BB.6121100 Stirrer, PHR 12/110, 110rpm. Low Viscosity, 2.4kg, 1×gear
BB.6127000 Stirrer, PHR 12/ 70, 700rpm. Medium Viscosity, 2.8kg, 2×gear
BB.6000245 Regulation valve 1/4"

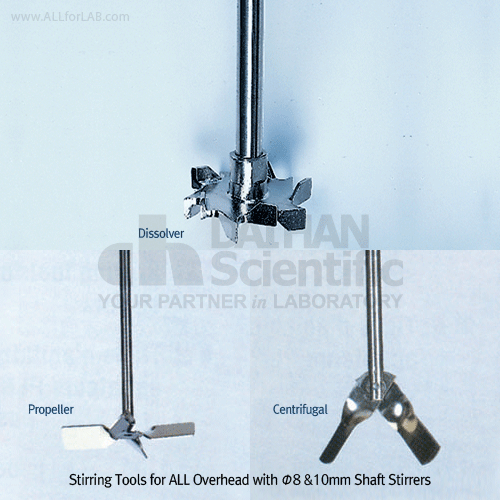

“Buddeberg” Stirring Tools for ALL Overhead with Φ8 &10mm Shaft Stirrers
* 재질 : Stainless-steel
* 수치의 단위는 mm
Dissolver
BB.6001303 Φ40 mm blade, Φ8×L350 mm shaft
BB.6001305 Φ60 mm blade, Φ8×L550 mm shaft
BB.6001307 Φ80 mm blade, Φ8×L550 mm shaft
Propeller
BB.6001342 Φ 50 mm blade, Φ8×L350 mm shaft
BB.6001345 Φ100 mm blade, Φ8×L550 mm shaft
Centrifugal
BB.6001352 Φ 60/15 mm blade, Φ8×L350 mm shaft
BB.6001355 Φ100/24 mm blade, Φ8×L550 mm shaft

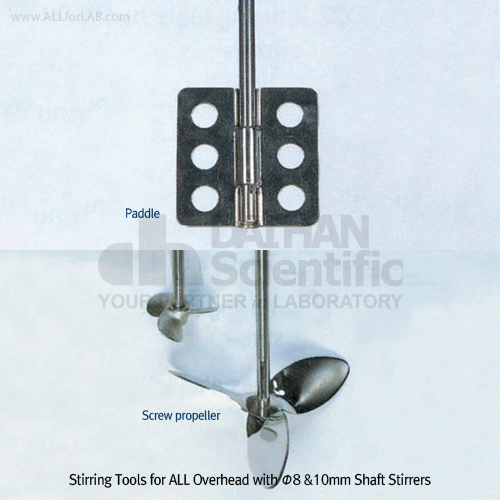

Paddle
BB.6001373 Φ 70 mm blade, Φ 8×L350 mm shaft
BB.6001375 Φ 70 mm blade, Φ 8×L550 mm shaft
BB.6001376 Φ150 mm blade, Φ10×L550 mm shaft
Screw propeller
BB.6001381 Φ 45 mm blade, Φ 8×L350 mm shaft
BB.6001382 Φ 55 mm blade, Φ 8×L350 mm shaft
BB.6001385 Φ140 mm blade, Φ10×L550 mm shaft
BB.6001388 Φ140 mm blade, Φ10×L550 mm shaft
Double blade
BB.6001460 Φ60 mm, Φ8×L500 mm shaft
BB.6001480 Φ80 mm, Φ8×L500 mm shaft
Anchor
BB.6001485 Φ 80 mm blade, Φ 8×L500 mm shaft
BB.6001490 Φ100 mm blade, Φ 8×L500 mm shaft
BB.6001495 Φ150 mm blade, Φ10×L600 mm shaft |
 |
|
|
|
