* Stirrers utilized compressed-air as a power source - No electric motor
* Powerful, safe(No-explosion), and compact stirrers, are easy-to operate.
* Rotational gear motor provides powerful stirring, and maintains uniform rate.

For use in laboratory and industries which need stirring.
This poweful stirrer is connected to compressed air by a hose.
Choose matched type depending on viscosity of solutions. Recomended
“Safety filter unit WE14”for protecting contamination that can come from compressed-air and
for extending life of stirrer. PCR- type models have a tacometer.

특징 (Features)
* 압축공기(Compressed-air : Max. 6 Bar)의 힘을 동력으로 활용한 교반기(NO-electric motor)로서,
   무전력/방폭/Compact size/강력한 힘/최상의 안전성/ 쉽고 편리한 운전/긴 수명 등을 보장함.
* 용법 : 전기대신 압축공기(예:Compressor 컴푸레사)를 Hose로 Air 교반기에 연결하면 됨.
* 사용되는 압축공기로부터 유발될수 있는 Air-motor의 오염/고장방지 및 수명연장을 위한
   “Safety Filter Unit WE14”(Option)를 사용하는것이 좋음.
* 회전-Gear types로서, 강력한 교반력 / 균일한 속도가 유지되며, 저점도 / 최고점도
   (Low / Highest-Viscosity) 용액의 자유로운 교반, 편리하고 간편한 Speed Control-valve
   (교반기와 교반기 Support-arm 사이에 위치함.)
* PLR* * Type-models는 Tachometer (회전속도계) 부착형임.

용도 (Applications)
* 교반이 필요한 모든 실험 / 연구 / 산업현장 어디에서도 편리하게 사용됨.

기본 구성품 및 규격 (Basic Consisting & Specifications)
1) PLR air-motor with Stainless steel Housing (Φ 38, 높이는 기종에 따라 다름 : 125 ~ 228 mm)
2) Speed control valve & Φ 13 mm Support arm (Φ 13×L255 mm) with hose connector Φ 9 mm
3) Max.6-bar Operating pressure & 200 W Output power(교반침)
4) Φ 10×L26 mm Output shaft, and Φ 62 mm Tachometer(단, PLR��T-models에 한함.)
5) 25 Liter(max.) Stirring capacity & Air 소비량 260 Liter/min(at 6 bar)
6) RPM(max.) : 15000, 1750, 1000 & 80등 4종류의 모터

주문 (Ordering)

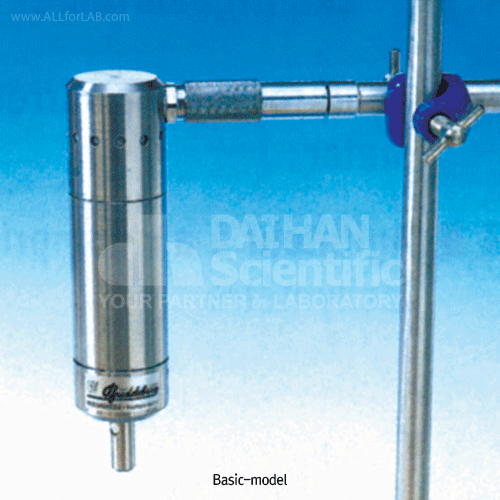

Compressed Air Stirrers, PLR Basic-models
BB.6100000 Stirrer , PLR10, 15,000 rpm, 저점도용, 0.3 Nm, no-gear, 0.9 kg
BB.6110000 Stirrer , PLR11, 1,750 rpm, 중점도용, 2.3 Nm, 1×gear, 1.1 kg
BB.6120000 Stirrer , PLR12, 1,000 rpm, 고점도용, 3.5 Nm, 2×gear, 1.4 kg
BB.6130000 Stirrer , PLR13, 80 rpm, 최고점도용, 25 Nm, 3×gear, 1.6 kg

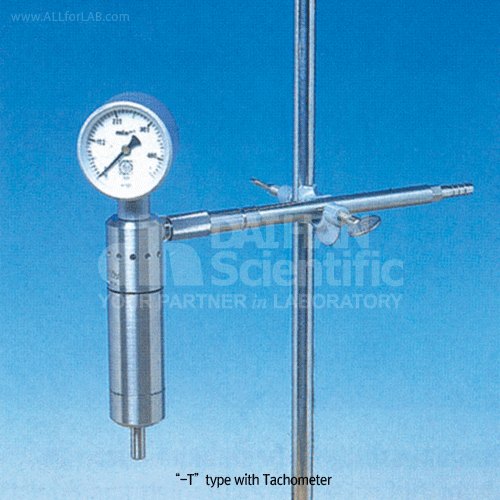

Compressed Air Stirrers, PLR with Tachometer
BB.6101000 Stirrer, PLR10T, 15000 rpm, 저점도용, 0.3 Nm, no-gear, 1.2 kg
BB.6111000 Stirrer , PLR11T, 1750 rpm, 중점도용, 2.3 Nm, 1×gear, 1.4 kg
BB.6121000 Stirrer , PLR12T, 1000 rpm, 고점도용, 3.5 Nm, 2×gear, 1.7 kg
BB.6131000 Stirrer , PLR13T, 80 rpm, 최고점도용, 25 Nm, 3×gear, 1.9 kg
                                          ※ Note : Nm - Torque 표시임.

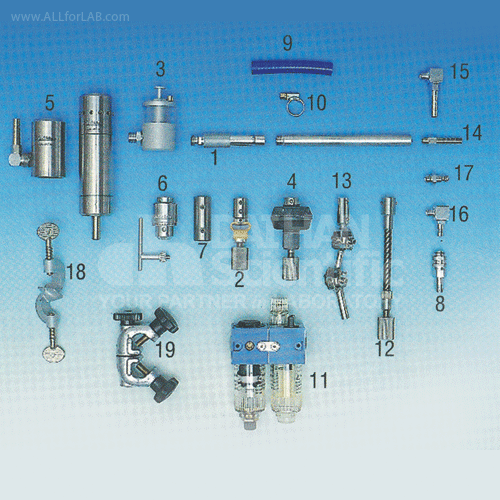

Accessories for PLR stirrers
BB.6000033 Fig.2) Flexible coupling capacity 10 mm, “PK 10”
BB.6000034 Fig.2) Flexible coupling capacity 10/13 mm, “PK 10/13”
BB.6000020 Fig.3) Finger-operated oiler for stainless and tacho-version“, OT”
BB.6000029 Fig.4) Flexible coupling capacity 10 mm, “K10”
BB.6000030 Fig.4) Flexible coupling capacity 10/13 mm, “K 10/13"
BB.6000120 Fig.5) Contained exhaust air, “GA”
BB.6000121 Fig.5) Contained exhaust air for tacho-version,“ GA-T”
BB.6000021 Fig.6) Chuck for shaft 0,5 - 8 mm,“ F8”
BB.6000006
