대형 회전배양기, 하단조절형, UL, 0.2~5.3 rpm, 5~45 Bottle용, “CE/ISO/UL”
Modular Cell Production Roller Apparatus , with All-Position Drives, Deck-type |
|
가격 : 견적가
제조사 : WHEATON
모델선택 : 총 (12)개의 모델이 등록되어 있습니다.
|
|
|
 |
* Can easily Use one 5 position base unit
or Add up to eight additional 5 position decks.
* Provides up to 75,000 cm2 Total Surface Area for cell growth
* Permits end user to keep pace with increased production requirements by
Adding Bottle Positions as needed.
* Greaseless Bearings prevent leaching and eliminate bearing seizures.
* Available bottles from Φ108 to 121 mm and up to L500 mm
* A powerful DC motor with soft start speed control drices the bottles through
Nonslip Belts
* Optional Rotation Alarm and Battery Backup system available
* Conforms to UL & CSA Laboratory Standards
This Roller Culture Apparatus provides the ultimate in system flexibility for scale-up and production
of monolayer cell cultures in standard roller bottles. The all-position drive model is a positive
traction drive system for lightweight plastic bottles, where each roller is individually driven. A
locking speed control knob prevents accidental change in rotation rates is included.
특징 (Features)
* Base drive unit과 5-Position(배양병 5개용) roller deck 1개가 기본이며,
필요에 따라 5-Position deck를 8개까지 추가하여 Scale-up 가능.
* Softstart speed control 기능이 있는 강력한 DC motor가 Nonslip belts를 통해 배양병을 회전시킴
* 모든 Roller가 톱니구조로 맞물려 빈틈없이 돌아가는 Positive traction drive system으로 회전력이
강력하여 가벼운 플라스틱병까지도 완벽하게 회전시킨다.
* 갑작스런 회전속도의 변화를 방지하기 위한 Locking speed control knob 장착.
* CE-mark, conforms to UL3101-1 and CSA 22.2 #1010.
규격 (Specifications)
* Electrical requirements : 220V, 60 Hz, 35W
* Dimensions : w75×d62×h34.5 cm (Base unit with 1 deck), 31.5Kg
* 개별 추가deck : h18.3cm, 9.45Kg
* Bottle size : Φ108 ~ 121 mm×L500 mm까지, bottles는 별도 구입
* Bottle speed : 0.25 ~ 5.3 rpm (Special Speed available on request)
* Maximum temperature for use : 40℃.
주문 (Ordering)
WH.348970.C Base unit with, 1 deck, 5×bottle용
WH.348971.C Base unit with, 2 decks, 10×bottle용
WH.348972.C Base unit with, 3 decks, 15×bottle용
WH.348973.C Base unit with, 4 decks, 20×bottle용
WH.348974.C Base unit with, 5 decks, 25×bottle용
WH.348975.C Base unit with, 6 decks, 30×bottle용
WH.348976.C Base unit with, 7 decks, 35×bottle용
WH.348977.C Base unit with, 8 decks, 40×bottle용

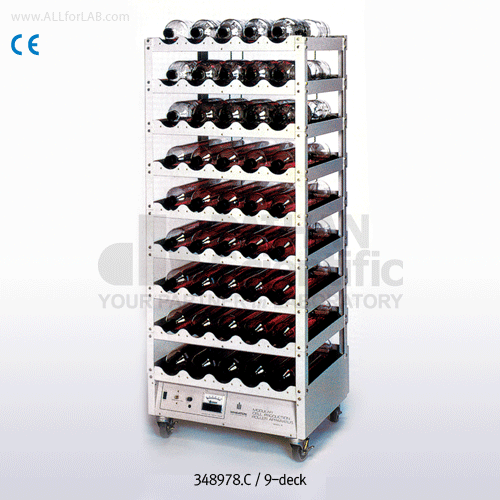

WH.348978.C Base unit with, 9 decks, 45×bottle용
WH.348969 5-Position deck
Additional Roll-In & CO2 Incubators for Roller Culture Apparatus

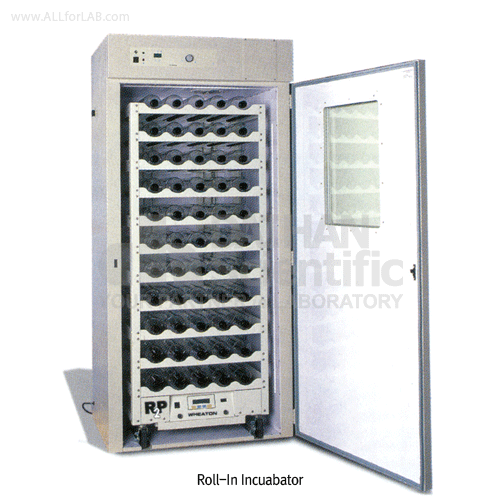

WH.753684.C Roll-In Incubator, 220V/60Hz
Dimensions : (Inner)w88.9×d66×h193 cm,
(Outer)w104.1×d |
 |
|
|
|
|
|
