* Origin : Made in USA (미국)
* NuAire Quality Statements (품질 보장 인증) :
     ISO 9001:2000 Certificate (품질경영시스템 국제규격 인증)
     ISO 13485 Certificate (의료기기 인증)

* The NuAire Incubator Control Electronics(N.I.C.E. Electronics)
* Accurate Infrared CO2 Control System
* Class 100 Air Flow Within the Chamber
* Fast Recovery Time
* Continuous Humidity Supply System

Application/사용분야
* 모든 세포 및 조직 배양 관련 연구
* Storage and Preservation of Embryos, Gametes and Animal Tissue Cell Cultures at on near
   body Temperature.
* in vitro Fertilization, Genetic Disease, Cancer Research etc.
* Microbial Organism (Mycoplasma, Chlamydia etc.) Control

Features/특징
* The NuAire Incubator Control Electronics(N.I.C.E. Electronics) : state-of-the-art Microprocessor는 세포
배양의 최적의 조건을 제공하기 위한 챔버 내 환경을 정확하게 조절하는 시스템을 제공
* Accurate Infrared CO2 Control System : 비분산형 적외선 센서로 안정적이고 매우 정확한CO2 조절이 가능
* Class 100 Air Flow Within the Chamber : HEPA 필터는 매 1분 간격으로 챔버 내 공기를 완전 순환시켜
챔버 내의 공기를 청정 상태로 지속 유지
* Fast Recovery Time : 분당 0.3℃로 온도 보상
* Continuous Humidity Supply System
* 비분산 적외선 CO2 센서 채용으로 매우 안정하고 잦은 보정이 필요 없는 측정으로 챔버 내 정확 CO2
   조절이 가능
* 교체가 용이한 대형 HEPA 필터 카트리지는 순환 시 공기를 여과하여 챔버 내부 환경을 청정으로 유지
* Fan과 Blower를통한챔버내부 공기는매우느린속도로균일하게 순환되며세포성장에영향을미치지않음
* 잦은 문 여닫이에도 챔버 내부는 분당 0.3℃의 속도로 온도 보상되며, 시료에 온도의 영향을 최소화 함
* Microprocessor Based, Non-Dispersive Infrared CO2 Sensor is within the Chamber Air Plenum so very
Accurate CO2 control is achieved.

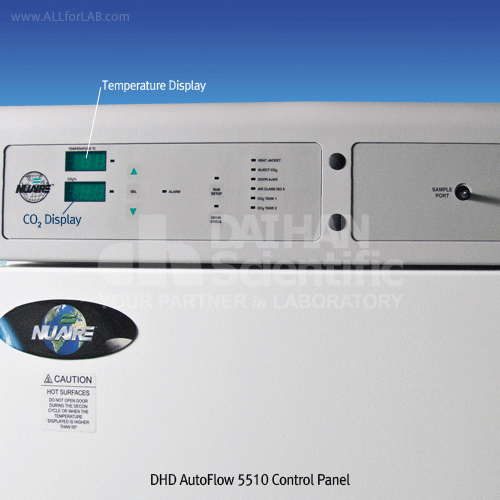

* The Microprocessor is “User-Friendly” with Status Indicators, LED Display of Control Parameters and a
Touch Control Keypad to permit Efficient Operator entry of Data.
* Directly Heated by Foil Heating Elements attached to the Sides, Bottom, Top and Back of the Chamber
* Constant Air Circulating within the Chamber using a Continuous Operating Fan / Motor / Blower within
the Upper Air Plenum and Sidewall Duct System

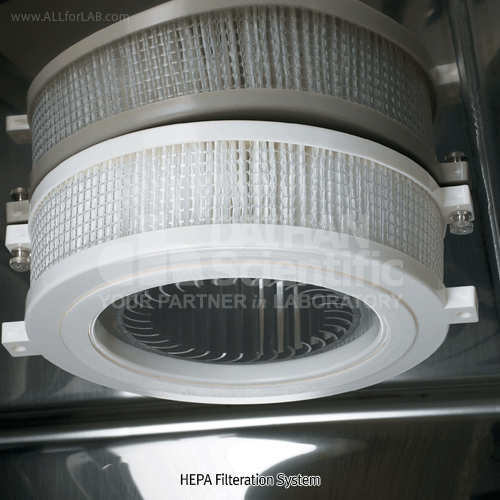

* Continued Air Filtration in the chamber using a Large Replaceable 99.99% Efficient HEPA Filter Cartridge
* The HEPA Filter Uniformly distributes and cleans the Air within the Chamber at a rate of one Complete
Change per Minute
* Relative Humidity Level up to 95% is achieved in the Incubator by the Use of a Stainless Steel Pan filled
with Distilled Water and Placed on the Bottom of the Chamber.
* An Air Pump Continuously Introduces Fresh Air into the Chamber at a Variable Rate to Reduce
Condensation
* Reliable, Accurate, Stable Temperature and Infrared Gas Controls with Quality and Value to meet
Laboratory Performance for Optimum Growth Conditions
* The Interior Corners of the Growth Chamber are Coved for Ease of Cleaning and to prevent Contaminants
from becoming Trapped

Accurate Infrared CO2 Control System
* Microprocessor based, non-Dispersive Infrared CO2 Sensor
* The amount of Energy diffused to the Detector is an exact Logarithmic Function of the CO2 Concentration
in the Gas between Source and Detector.
* The wavelengths are absorbed by a Filter in the CO2 Bandwidth making the Measurements Insensitive
to other Components, such as Water Vapor.
* Advanced Design provides a very Stable Drift-Free Output requiring less Frequent Calibration.

Ordering Information

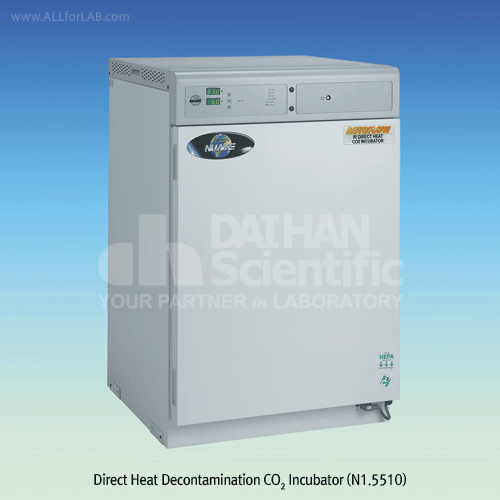

N1.5500    CO2 Incubators, Direct Heat Automatic, DH AutoFlow 5500, Air-jacket 188L
