Economical & Practical Type
* Digital PID Programmable Controller for Precise Temperature Control
* RS485 Interface for Remote Monitoring and Controlling with PC (Standard)
* Automatic Defrost Function
* CE Certified
*¡°PL(Product Liability) Insurance¡± : One Hundred Million/Korean Won(¡¬) for Each of Human and an Object

Application & Features
* Economical & Practical Type
* Digital PID Programmable Controller for Precise Temperature Control
* Temperature from -20¡É to 80¡É, Relative Humidity from 30% to 95% RH
* Program Function : 30 Patterns, 300 Segments
* Low Water Level Alarm System
* Inner Tempered Glass Door with Silicon Packing
* RS485 Interface for Remote Monitoring and Controlling with PC (Standard)
* Temperature & Humidity Recorder(6 Channels & 2Pens) and RS232C Communication Interface (Optional)
* The Powerful and Silent Dual Fan Motor Assures Temperature Uniformity by Strong Air Circulation
* Automatic Defrost Function
* Over Temperature and Over Current Protection for User Safety
* CE Certified
*¡°PL(Product Liability) Insurance¡± : One Hundred Million/Korean Won(¡¬) for Each of Human and an Object


Ordering Information

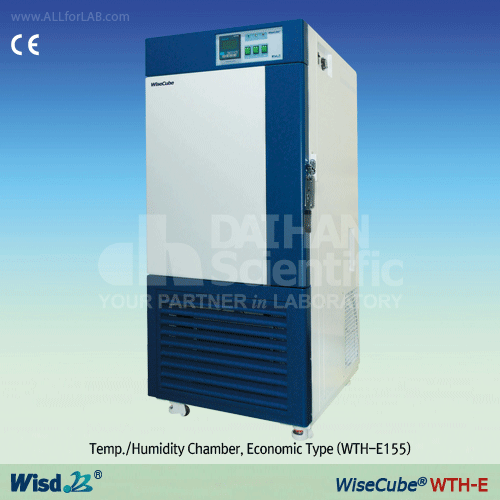

DH.WTHE0155 Temp. / Humidity Chamber, WTH-E155,
DH.WTHE0155 -20¡É to 80¡É, 155 Lit.
DH.WTHE0305 Temp. / Humidity Chamber, WTH-E305,
DH.WTHE0305 -20¡É to 80¡É, 305 Lit.
DH.WTHE0420 Temp. / Humidity Chamber, WTH-E420,
DH.WTHE0420 -20¡É to 80¡É, 420 Lit.
DH.WTHE0800 Temp. / Humidity Chamber, WTH-E800,
DH.WTHE0800 -20¡É to 80¡É, 800 Lit.

Spare Accessories

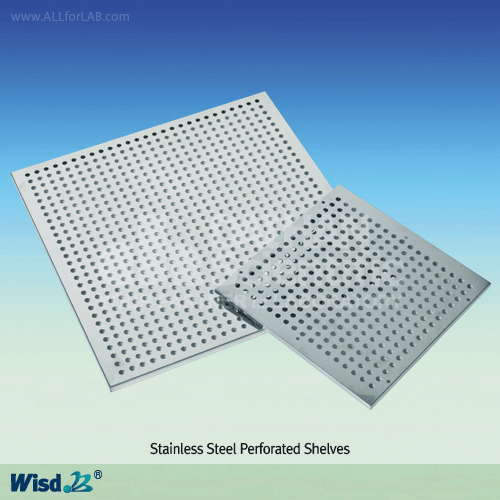

DH.WTH11155 Perforated Shelf, Stainless Steel, THS1155,
DH.WTH11155 for 155 Lit., w470¡¿d480mm
DH.WTH11305 Perforated Shelf, Stainless Steel, THS1305,
DH.WTH11305 for 305 Lit., w590¡¿d580mm
DH.WTH11420 Perforated Shelf, Stainless Steel, THS1420,
DH.WTH11420 for 420 Lit., w720¡¿d640mm
DH.WTH11800 Perforated Shelf, Stainless Steel, THS1800,
DH.WTH11800 for 800 Lit., w970¡¿d980mm

Optional Accessories

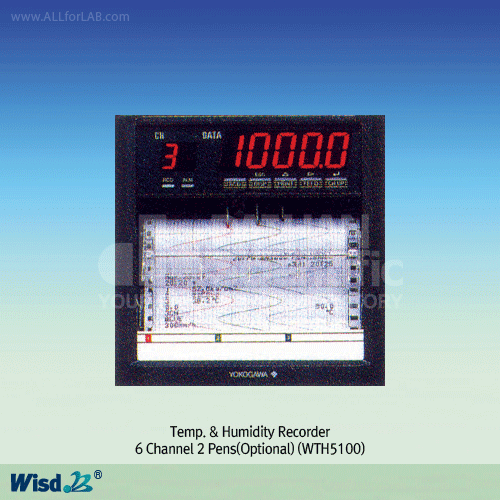

DH.WTH05100 Temperature & Humidity Recorder, WTH5100
DH.WTH05105 Chart Paper, WTH5105

Validation (IQ, OQ) Service
DH.WTHE3155 Validation Service(IQ, OQ), THEV155, for WTHE-155
DH.WTHE3305 Validation Service(IQ, OQ), THEV305, for WTHE-305
DH.WTHE3420 Validation Service(IQ, OQ), THEV420, for WTHE-420
DH.WTHE3800 Validation Service(IQ, OQ), THEV800, for WTHE-800


¡Ø ÀÚ¼¼ÇÑ »çÇ×Àº PDFÆÄÀÏ ÂüÁ¶ÇϽñ⠹ٶø´Ï´Ù.
