WiseTherm(R)HP-D Digital Precise Hotplate, Ceramic-Coated Plate |
|
가격 : 견적가
제조사 : DAIHAN
모델선택 : 총 (11)개의 모델이 등록되어 있습니다.
|
|
|
 |
Patented Jog-Shuttle Control System
* CE Certified
*“PL(Product Liability) Insurance” : One Hundred Million/Korean Won(＼) for Each of Human and an Object
Application & Features
* Digital Feedback Control by High-Performance Microprocessor
* Smart Design of Body made by Aluminum Die-Casting (HP-20D)
* Ceramic Coated Plate-Chemical/Acid Resistance
* Superior Temperature Uniformity : 10% less on the Plate at Ambient Temperature
* Accurate Temp. Control of the Sample in the Vessel using Optional PT100 Sensor
* Digital LCD Display with Back-Light Function
* Digital Timer Function Included : 99 hr 59 min Settable
* Storage Function for the Set Values : Temp. and Timer
* Locking Mode for Experimental Safety Supported (Input to Jog Shuttle can be disabled)
* User’s Self-Compensation Function : to Control Difference between Real Temp. and Indicated Temp. (±10.0℃)
* Alarm Function : Error Status and Timer-End
* Patented Jog-Shuttle Control System
* CE Certified
*“PL(Product Liability) Insurance” : One Hundred Million/Korean Won(＼) for Each of Human and an Object
Ordering Information
HP-20D Hotplate Unit & Package Set
DH.WHP03020 Digital Hotplate, HP-20D-Unit Only, 180×180mm, to 380℃

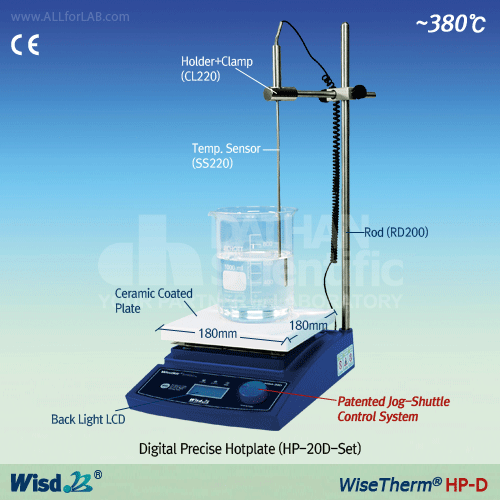

DH.WHP03021 Digital Hotplate Package, HP-20D-Set with SS200 External Temp. Sensor, RD200 Support Rod and CL220 Clamp
DH.WHP03021 Packing Dimension w400×d280×h200 mm, Gross Weight 5kg
HP-30D Hotplate Unit & Package Set

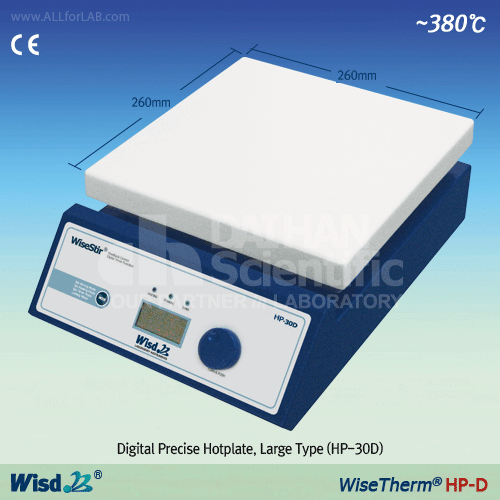

DH.WHP03022 Digital Hotplate, HP-30D-Unit Only, 260×260mm, to 380℃
DH.WHP03023 Digital Hotplate Package, HP-30D-Set, with SS100 External Temp. Sensor, RD100 Support Rod and CL220 Clamp
DH.WHP03023 Packing Dimension w430×d320×h200 mm, Gross Weight 5kg

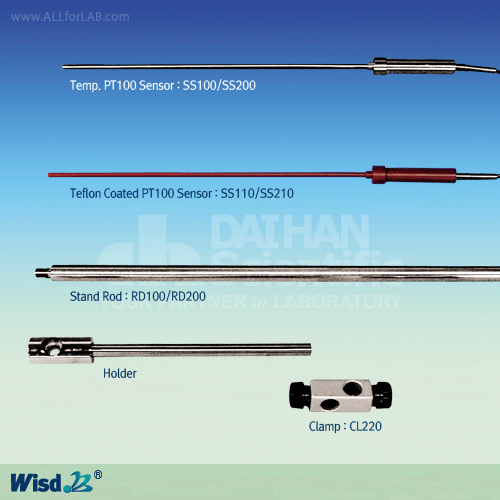

Additional Function Accessories
DH.WHP503020 Direct Contact Temperature Sensor, SS100, PT100*, for HP-30D, MSH-30D and SMHS
DH.WHP503021 Direct Contact Temperature Sensor, SS110, PT100*, Teflon Coated, for HP-30D, MSH-30D and SMHS
DH.WHP503030 Direct Contact Temperature Sensor, SS200, PT100*, for HP-20D, MSH-20D and MSH-50D/55D
DH.WHP503031 Direct Contact Temperature Sensor, SS210, PT100*, Teflon Coated, for HP-20D, MSH-20D and MSH-50D/55D
DH.WHP503011 Stand Rod, RD100, Stainless Steel, Φ12.7×450mm, for HP-30A/30D, MSH-30A/30D, Stand Rod, RD200, Stainless Steel, Φ12×L450mm, for HP-20A/20D, MSH-20A/20D, MSH-50A/55A, MSH-50D/55D and SMHS
DH.WHP503012 Holder + Clamp, CL220, for Temp. Sensor
*PT100 : External Sensor for Feedback Control of the Temperature in the Vessel, Accuracy of ±0.3℃
※ 자세한 사항은 PDF파일 참조하시기 바랍니다.
|
 |
|
|
|
