표준 장형 테파 글라스 조인트, 콘 & 소켓, ASTM
Standard Long taper Glass Joints, -Cone & -Socket |
|
가격 : 견적가
제조사 : SCHOTT-MEDICA
모델선택 : 총 (32)개의 모델이 등록되어 있습니다.
|
|
|
 |
* DURAN(R) Borosilicate glass α3.3 <특급유리> 표준 테파 정밀 연마 (Precision-Ground)로 완전 공통 죠인트임.
* 유리 용융 접합 가공시 모든 Borosilicate glass α3.3 과 동질작업됨.

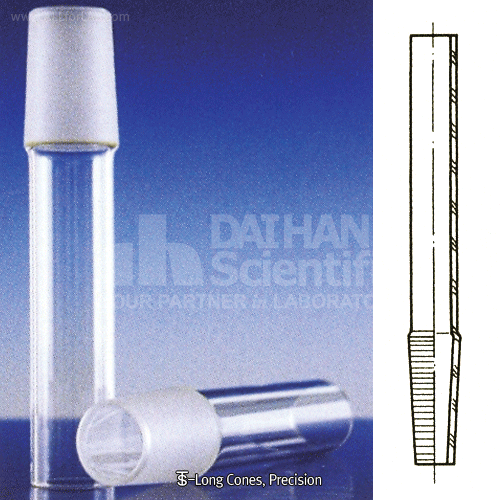

(1) -Long Cones, Precision/장형 표준 -콘 (내피), 정밀형, ASTM
SM.28615460 Joint, Long Cone, 14/35, od13×Thick 1.5 mm
SM.28615580 Joint, Long Cone, 19/38, od17×Thick 1.8 mm
SM.28615660 Joint, Long Cone, 24/40, od22×Thick 1.8 mm
SM.28615920 Joint, Long Cone, 29/42, od26×Thick 2.0 mm
SM.28615980 Joint, Long Cone, 34/45, od30×Thick 2.0 mm
SM.28616260 Joint, Long Cone, 45/50, od40×Thick 2.3 mm

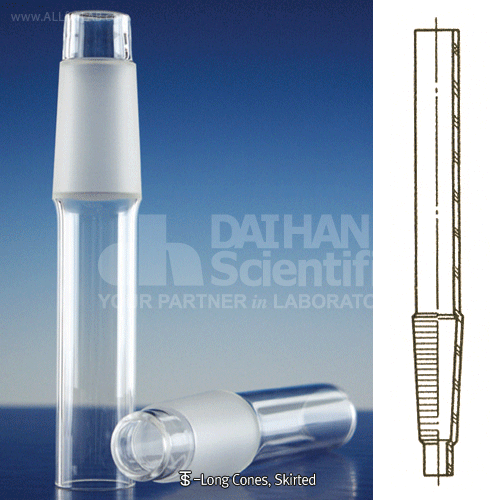

(2) -Long Cones, Skirted, Precision, ASTM
장형 표준 -콘 (내피), 스커트부, 정밀형
SM.28616480 Joint, Cone, Skirt, 14/35
SM.28616560 Joint, Cone, Skirt, 19/38
SM.28616640 Joint, Cone, Skirt, 24/40
SM.28616820 Joint, Cone, Skirt, 29/42

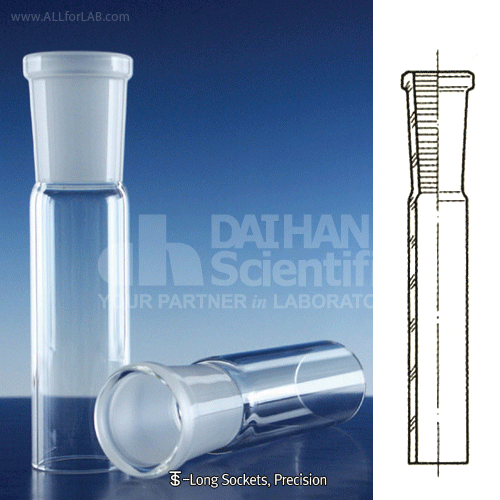

(3) -Long Sockets, Precision/장형 표준 -소켓 (외피), 정밀형, ASTM
SM.28651840 Joint, Socket, 10/30, Tube od13×Thick 1.5 mm
SM.28653440 Joint, Socket, 14/35, Tube od17×Thick 1.8 mm
SM.28654160 Joint, Socket, 19/38, Tube od22×Thick 1.8 mm
SM.28654620 Joint, Socket, 24/40, Tube od28×Thick 2.0 mm
SM.28655840 Joint, Socket, 29/42, Tube od33×Thick 2.0 mm
SM.28656020 Joint, Socket, 34/45, Tube od40×Thick 2.3 mm |
 |
|
|
|
