표준 -볼 조인트와 소켓, DIN/ISO
Standard Spherical Joints, -Ball & -Socket |
|
가격 : 견적가
제조사 : SCHOTT-MEDICA
모델선택 : 총 (28)개의 모델이 등록되어 있습니다.
|
|
|
 |
Spherical joints, inches size, precision-ground
* DURAN(R) Borosilicate glass α3.3 <특급유리>
* Inches sizes
* 표준 테파 정밀 연마 (Precision-Ground)로 완전 공통 죠인트임.
* 유리 용융 접합 가공시 모든 Borosilicate glass α3.3 과 동질작업됨.

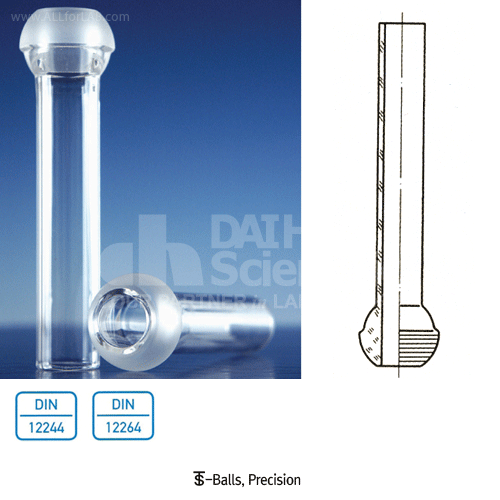

(1) -Balls, Precision
표준 -볼 (내피), 정밀형
SM.28632160 Joint, Ball, 13 / 5, Tube od 8 ×Thick 1.5 mm
SM.28632320 Joint, Ball, 19 / 9, Tube od13×Thick 1.5 mm
SM.28632480 Joint, Ball, 29 / 15, Tube od19×Thick 1.8 mm
SM.28632600 Joint, Ball, 35 / 20, Tubeod24×Thick 1.8 mm
SM.28632760 Joint, Ball, 40 / 25, Tube od30×Thick 2.0 mm
SM.28632860 Joint, Ball, 51 / 30, Tube od36×Thick 2.8 mm
SM.28632960 Joint, Ball, 65 / 40, Tube od48×Thick 3.2 mm

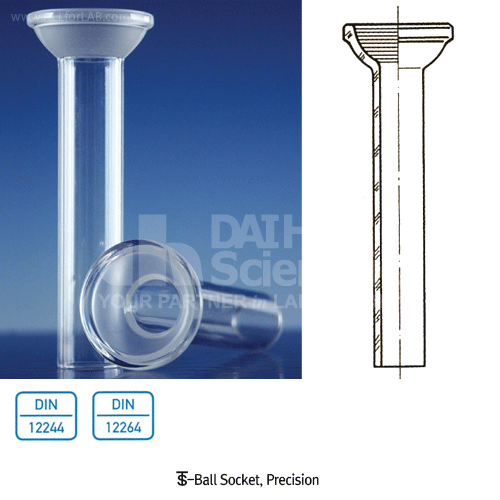

(2) -Ball Socket, Precision
표준 -볼 소켓 (외피), 정밀형
SM.28632100 Joint, Socket, 13 / 5, Tube od 8 ×Thick 1.5 mm
SM.28632260 Joint, Socket, 19 / 9, Tube od13×Thick 1.5 mm
SM.28632420 Joint, Socket, 29 / 15, Tube od19×Thick 1.8 mm
SM.28632540 Joint, Socket, 35 / 20, Tube od24×Thick 1.8 mm
SM.28632700 Joint, Socket, 40 / 25, Tube od30×Thick 2.0 mm
SM.28632820 Joint, Socket, 51 / 30, Tube od36×Thick 2.8 mm
SM.28632900 Joint, Socket, 65 / 40, Tube od48×Thick 3.2 mm |
 |
|
|
|
