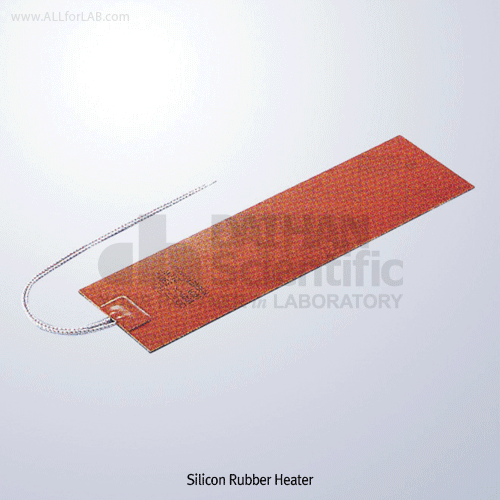

실리콘러버히터, 내후성/내약품성, 0.78W/㎠, AC 240V

Silicon Rubber Heater, -20~235℃

가격 : 견적가
제조사 : DAIHAN

모델선택 : 총 (26)개의 모델이 등록되어 있습니다.

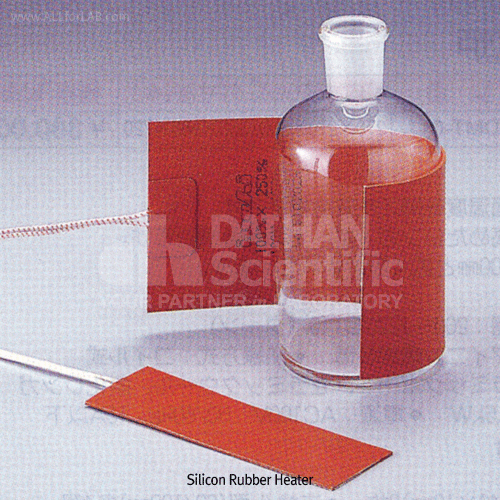

곡면, 평면 등 가열체의 형상에 따라 간단하게 붙여사용할 수 있음.
* 리드선 : 실리콘유리내열 전선
* 절연저항치 : DC500V에서 50㏁이상� 내전압 : 1500V에서 1분간
* 용도 : 의료기기, 항공우주기기, 냉동분야의 동결방지용 등으로 사용함.
* 양갈래 리드선을 Plug(Acc.참조)에 연결하여 사용가능함.

H3.SR020342      Silicon Rubber Heater, t1.6× w51×ℓ 76㎜
H3.SR020443      Silicon Rubber Heater, t1.6× w51×ℓ102㎜
H3.SR020644      Silicon Rubber Heater, t1.6× w51×ℓ152㎜
H3.SR020845      Silicon Rubber Heater, t1.6× w51×ℓ203㎜
H3.SR021247      Silicon Rubber Heater, t1.6× w51×ℓ305㎜
H3.SR021648      Silicon Rubber Heater, t1.6× w51×ℓ406㎜

H3.SR030442      Silicon Rubber Heater, t1.6× w76×ℓ102㎜
H3.SR020845      Silicon Rubber Heater, t1.6× w76×ℓ203㎜
H3.SR041246      Silicon Rubber Heater, t1.6× w76×ℓ305㎜
H3.SR032048      Silicon Rubber Heater, t1.6× w76×ℓ508㎜
H3.SR040441      Silicon Rubber Heater, t1.6×w102×ℓ102㎜
H3.SR040843      Silicon Rubber Heater, t1.6×w102×ℓ203㎜
H3.SR041245      Silicon Rubber Heater, t1.6×w102×ℓ305㎜

H3.SR060641     Silicon Rubber Heater, t1.6×w152×ℓ152㎜
H3.SR061243      Silicon Rubber Heater, t1.6×w152×ℓ305㎜
H3.SR062044      Silicon Rubber Heater, t1.6×w152×ℓ610㎜
H3.SR070341      Silicon Rubber Heater, t1.6×w178×ℓ 76㎜
H3.SR070442      Silicon Rubber Heater, t1.6×w178×ℓ102㎜
H3.SR070846      Silicon Rubber Heater, t1.6×w178×ℓ203㎜

H3.SR080841      Silicon Rubber Heater, t1.6×w203×ℓ203㎜
H3.SR081242      Silicon Rubber Heater, t1.6×w203×ℓ305㎜
H3.SR081643      Silicon Rubber Heater, t1.6×w203×ℓ406㎜
H3.SR082044      Silicon Rubber Heater, t1.6×w203×ℓ508㎜
H3.SR100541      Silicon Rubber Heater, t1.6×w254×ℓ125㎜
H3.SR101042      Silicon Rubber Heater, t1.6×w254×ℓ254㎜
H3.SR102543      Silicon Rubber Heater, t1.6×w254×ℓ381㎜
H3.SR102044      Silicon Rubber Heater, t1.6×w254×ℓ508㎜

Optional Accessories
W3.P220020    Plugs, Earth Pole-type
W3.P220000    Plugs, No Earth Pole-typ

Cat. No.	모델명	단 위	가 격	수량	선 택
H3.SR020342	Heater, silicon&rubber, 51*76mm,	1/Ea.	견적가
H3.SR020443	Heater, silicon&rubber, 51*102mm,	1/Ea.	견적가
H3.SR020644	Heater, silicon&rubber, 51*152mm,	1/Ea.	견적가
H3.SR020845	Heater, silicon&rubber, 76*203mm,	1/Ea.	견적가
H3.SR021247	Heater, silicon&rubber, 51*305mm,	1/Ea.	견적가
H3.SR021648	Heater, silicon&rubber, 51*406mm,	1/Ea.	견적가
H3.SR030442	Heater, silicon&rubber, 76*102mm,	1/Ea.	견적가
H3.SR032048	Heater, silicon&rubber, 76*508mm,	1/Ea.	견적가
H3.SR040441	Heater, silicon&rubber, 102*102mm,	1/Ea.	견적가
H3.SR040843	Heater, silicon&rubber, 102*203mm,	1/Ea.	견적가
H3.SR041245	Heater, silicon&rubber, 102*305mm,	1/Ea.	견적가
H3.SR041246	Heater, silicon&rubber, 76*305mm,	1/Ea.	견적가
H3.SR060641	Heater, silicon&rubber, 152*152mm,	1/Ea.	견적가
H3.SR061243	Heater, silicon&rubber, 152*305mm,	1/Ea.	견적가
H3.SR062044	Heater, silicon&rubber, 152*610mm,	1/Ea.	견적가
H3.SR070341	Heater, silicon&rubber, 178*76mm,	1/Ea.	견적가
H3.SR070442	Heater, silicon&rubber, 178*102mm,	1/Ea.	견적가
H3.SR070846	Heater, silicon&rubber, 178*203mm,	1/Ea.	견적가
H3.SR080841	Heater, silicon&rubber, 203*203mm,	1/Ea.	견적가
H3.SR081242	Heater, silicon&rubber, 203*305mm,	1/Ea.	견적가
H3.SR081643	Heater, silicon&rubber, 203*406mm,	1/Ea.	견적가
H3.SR082044	Heater, silicon&rubber, 203*508mm,	1/Ea.	견적가
H3.SR100541	Heater, silicon&rubber, 254*125mm,	1/Ea.	견적가
H3.SR101042	Heater, silicon&rubber, 254*254mm,	1/Ea.	견적가
H3.SR102044	Heater, silicon&rubber, 254*508mm,	1/Ea.	견적가
H3.SR102543	Heater, silicon&rubber, 254*381mm,	1/Ea.	견적가
