Digital Fuzzy Control, Powerful Circulation Pump, Back Light LCD, up to 250℃, ±0.1℃

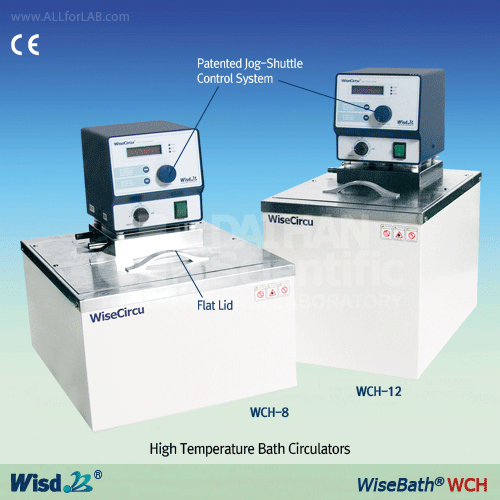

WiseCircu(R)WCH High Temperature Bath Circulator, 8-/12-/22-/30- Lit.

가격 : 견적가
제조사 : DAIHAN

모델선택 : 총 (16)개의 모델이 등록되어 있습니다.

* Innovative Easy-to-Use Digital Fuzzy Controller
* Powerful Circulation Pump ensures Temp. Uniformity
   : Internal and External Circulation
* Patented Jog-Shuttle Control System
* CE Certified
* “PL(Product Liability) Insurance”
   : One Hundred Million/Korean Won for Each of Human and an Object

Application & Features

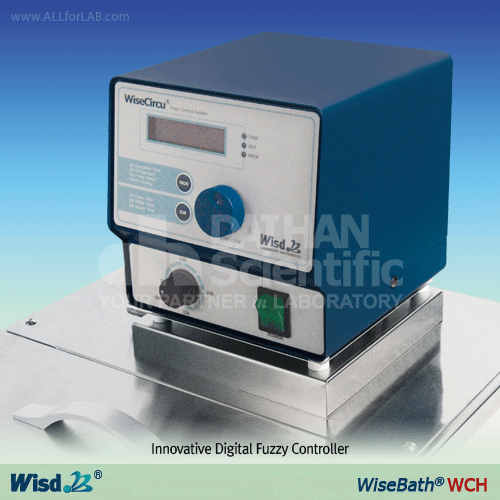

* Innovative Easy-to-Use Digital Fuzzy Controller
* Digital Timer Function :‘ Delay Time’and‘Operation Time’can be controlled.
* Stainless Steel Bath and Lid for Superior Durability and High Thermal Efficiency
* Powerful Circulation Pump Assures Temp. Uniformity. : Internal and External Circulation
* User’s Self-Compensation Function to Control Difference between Real Temp. and Indicated Temp.

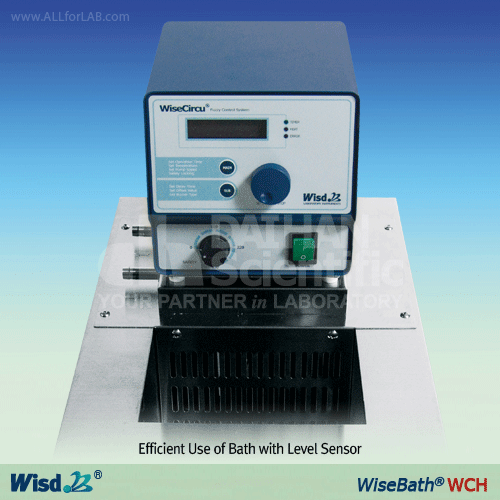

* Over Temperature-/Over Current-/Low Level-Protection, Sensor Error
* Patented Jog-Shuttle Control System and Digital LCD Display with Back-Light Function
* CE Certified
* “PL(Product Liability) Insurance”
   : One Hundred Million/Korean Won for Each of Human and an Object

Ordering Information

Ambient +5℃~250℃ Circulators
DH.WCH00108*     High Temp. Circulator, WCH-8 , 8 Lit.
DH.WCH00112*     High Temp. Circulator, WCH-12, 12 Lit.
DH.WCH00122*     High Temp. Circulator, WCH-22, 22 Lit.
DH.WCH00130*     High Temp. Circulator, WCH-30, 30 Lit.
                       *1×Stainless Steel Flat Lid Included

                                 Spare Accessories
DH.WCH10108     Flat Lid, Stainless Steel, CHBF108, for 8 Lit.,w288×d158mm
DH.WCH10112     Flat Lid, Stainless Steel, CHBF112, for 12 Lit.,w358×d158mm
DH.WCH10122     Flat Lid, Stainless Steel, CHBF122, for 22 Lit.,w448×d278mm
DH.WCH10130     Flat Lid, Stainless Steel, CHBF130, for 30 Lit.,w448×d278mm

                                 Optional Accessories

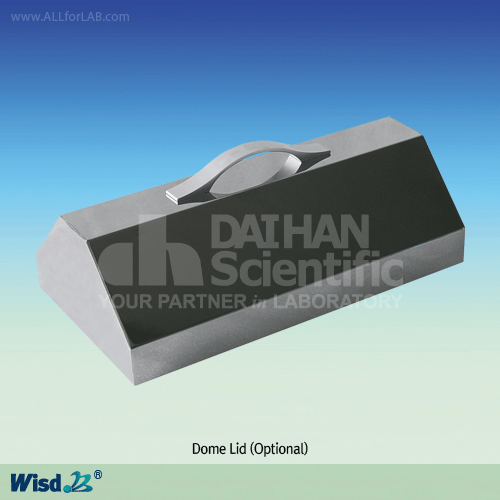

DH.WCH20108     Dome Lid, Stainless Steel, CHBD108, for 8 Lit.,w288×d158×h121mm
DH.WCH20112     Dome Lid, Stainless Steel, CHBD112, for 12 Lit.,w358×d158×h121mm
DH.WCH20122     Dome Lid, Stainless Steel, CHBD122, for 22 Lit.,w448×d278×h121mm
DH.WCH20130     Dome Lid, Stainless Steel, CHBD130, for 30 Lit.,w448×d278×h121mm

                                 Validation (IQ, OQ) Service
DH.WCH30108     Validation Service(IQ, OQ), CHBV108, for 8 Lit.
DH.WCH30112     Validation Service(IQ, OQ), CHBV112, for 12 Lit.
DH.WCH30122     Validation Service(IQ, OQ), CHBV122, for 22 Lit.
DH.WCH30130     Validation Service(IQ, OQ), CHBV130, for 30 Lit.

Cat. No.	모델명	단 위	가 격	수량	선 택
DH.WCH00108	Circulation Bath , high-temp., 8lit., wch-8, 230v,	1/Ea.	견적가
DH.WCH00112	Circulation Bath , high-temp., 12lit., wch-12, 230v ,	1/Ea.	견적가
DH.WCH00122	Circulation Bath , high-temp., 22lit., wch-22, 230v	1/Ea.	견적가
DH.WCH00130	Circulation Bath , high-temp., 30lit., wch-30, 230v ,	1/Ea.	견적가
DH.WCH10108	Lid, flat, stainless steel, chbf108, for 8lit. ,	1/Ea.	견적가
DH.WCH10112	Lid, flat, stainless steel, chbf112, for 12lit.,	1/Ea.	견적가
DH.WCH10122	Lid, flat, stainless steel, chbf122, for 22lit.,	1/Ea.	견적가
DH.WCH10130	Lid, flat, stainless steel, chbf130, for 30lit.,	1/Ea.	견적가
DH.WCH20108	Lid, dome, stainless steel, chbd108, for 8lit. ,	1/Ea.	견적가
DH.WCH20112	Lid, dome, stainless steel, chbd112, for 12lit.,	1/Ea.	견적가
DH.WCH20122	Lid, dome, stainless steel, chbd122, for 22lit.,	1/Ea.	견적가
DH.WCH20130	Lid, dome, stainless steel, chbd130, for 30lit.,	1/Ea.	견적가
DH.WCH30108	Validation Service, (iq,oq) , chbv108,for 8lit,	1/Ea.	견적가
DH.WCH30112	Validation Service, (iq,oq) , chbv112,for 12lit,	1/Ea.	견적가
DH.WCH30122	Validation Service, (iq,oq) , chbv122,for 22lit,	1/Ea.	견적가
DH.WCH30130	Validation Service, (iq,oq) , chbv130,for 30lit,	1/Ea.	견적가
