½ÇÇè±âÀÚÀç(ÃÊÀÚ·ù) A~K Ȩ > Á¦Ç°Á¤º¸ > ½ÇÇè±âÀÚÀç(ÃÊÀÚ·ù) A~K > Baths : ¼öÁ¶ > Cold Trap Bath : µ¿°á Æ®·¦

µ¿°áÆ®·¦¼¼Æ®, µå¿Í Çöó½ºÅ© Æ÷ÇÔ, Spherical Joint/Screw Connect-type

Complete Cold Trap Kit with Dewar Flask, Glass Cold Trap and Plastic Ring for Fixing of the Cold Tra

°¡°Ý : °ßÀû°¡
Á¦Á¶»ç : KGW

¸ðµ¨¼±Åà : ÃÑ (4)°³ÀÇ ¸ðµ¨ÀÌ µî·ÏµÇ¾î ÀÖ½À´Ï´Ù.
Àüü¸ðµ¨ ¹× »ç¾çº¸±â

¸ñ·Ïº¸±â
Á¦Ç°»ó¼¼¼³¸í
* Complete Kit with Glass Part :
(1) Cold Trap
(2) Plastic Ring for Fixing of the Cold Trap
(3) Dewar (without Viewing Stripes)

* Connect-type :
(1) S 29 : Spherical Joints S 29 (2) GL 18 : Screw thread GL 18 with PTFE Olive

Application
* Gas Cleaning by Condensation e.g. in Vacuum System

Advantages
* Made of Borosilicate glass 3.3
* Good Chemical Resistance
* Good Thermal Resistance
* Simple Low Cost Design
* Quick Exchange is possible

ÁÖ¹® (Ordering)
(1) S 29 Spherical Joint Connect-type

KG.1731   Cold Trap Kit, S29, Condensate 150§¢, Coolant 1000§¢
KG.17360 Cold Trap Kit, S29, Condensate 250§¢, Coolant 2000§¢

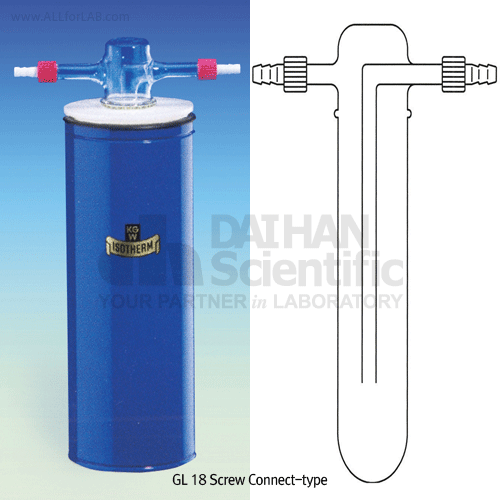

(2) GL 18 Screw Connect-type
KG.1740   Cold Trap Kit, GL 18, Condensate 150§¢, Coolant 1000§¢
KG.17362 Cold Trap Kit, GL 18, Condensate 250§¢, Coolant 2000§¢
¸ðµ¨ ¹× »ç¾ç
Cat. No. ¸ðµ¨¸í ´Ü À§ °¡ °Ý ¼ö·® ¼± ÅÃ
KG.1731 Cold trap, s 29 spherical joint connect-type, condensate 150ml, 1/Ea. °ßÀû°¡ °ßÀû¹®ÀÇ
KG.17360 Cold trap, s 29 spherical joint connect-type, condensate 250ml, 1/Ea. °ßÀû°¡ °ßÀû¹®ÀÇ
KG.17362 Cold trap, gl18 screw connect-type, gl18, condensate 250ml, 1/Ea. °ßÀû°¡ °ßÀû¹®ÀÇ
KG.1740 Cold trap, gl18 screw connect-type, gl18, condensate 150ml 1/Ea. °ßÀû°¡ °ßÀû¹®ÀÇ
