with Patented PID Jog-Shuttle Control System, BackLightLCD, Short Heat-up Time, Ceramic Fiber with H

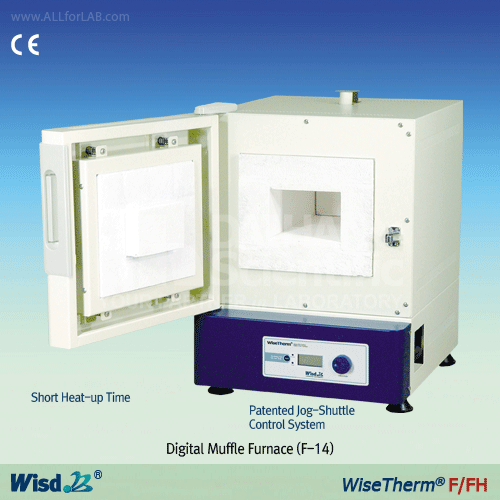

WiseTherm(R)F/FH High Performance Digital Muffle Furnaces, 1,000℃/1,200℃ |
|
가격 : 견적가
제조사 : DAIHAN
모델선택 : 총 (12)개의 모델이 등록되어 있습니다.
|
|
|
 |
* Ceramic Fiber embeded Heating Wire, 4-Side Heating
* Digital PID Controller
* CE Certified
* Patented Jog-Shuttle Control System and Digital LCD Display with Back-Light Function
*“PL(Product Liability) Insurance” : One Hundred Million/Korean Won(＼) for Each of Human and an Object
Application & Features
* Designed for Ash-Determinations, Enameling, Fusions, Ignitions, and Precipitate Drying
* Digital PID Controller

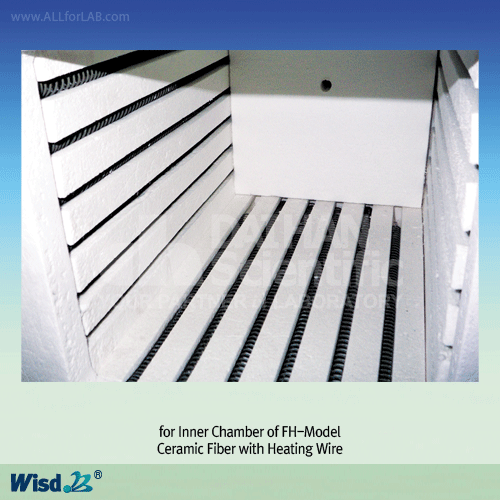

* Ceramic Fiber embeded Heating Wire, 4-Side Heating
* Ceramic Plate is Provided (FH-model only)
* Short Heating-Up Time
* Over Temperature & Over Current Protection, Sensor Error Detection
* Low Weight and High Grade Insulation
* High Quality / Low Price
* CE Certified
* Digital Timer Function : 99 hr 59 min
* Patented Jog-Shuttle Control System and Digital LCD Display with Back-Light Function
*“PL(Product Liability) Insurance” : One Hundred Million/Korean Won(＼) for Each of Human and an Object
Ordering Information
3~14 Lit. / 1000℃ Standard Furnace, without Ceramic Plate
DH.WF11.03 Furnace, F-03, 1000℃, 3 Lit.
DH.WF11.05 Furnace, F-05, 1000℃, 4.5 Lit.
DH.WF11.12 Furnace, F-12, 1000℃, 12 Lit.
DH.WF11.14 Furnace, F-14, 1000℃, 14 Lit.
27& 63 Lit. / 1000℃, Large Volume Furnace, without Ceramic Plate
DH.WF11.27 Furnace, large volume, F-27, 1000℃, 27 Lit.
DH.WF11.63 Furnace, large volume, F-63, 1000℃, 63 Lit.
3~14 Lit. / 1200℃, Standard Furnace, with Ceramic Plate
DH.WFH12.03 Furnace, FH-03, 1200℃, 3 Lit.
DH.WFH12.05 Furnace, FH-05, 1200℃, 4.5 Lit.
DH.WFH12.12 Furnace, FH-12, 1200℃, 12 Lit.
DH.WFH12.14 Furnace, FH-14, 1200℃, 14 Lit.
27& 63 Lit. / 1200℃, Large Volume Furnace, with Ceramic Plate
DH.WFH12.27 Furnace, Large Volume, FH-27, 1200℃, 27 Lit.
DH.WFH12.63 Furnace, Large Volume, FH-63, 1200℃, 63 Lit.

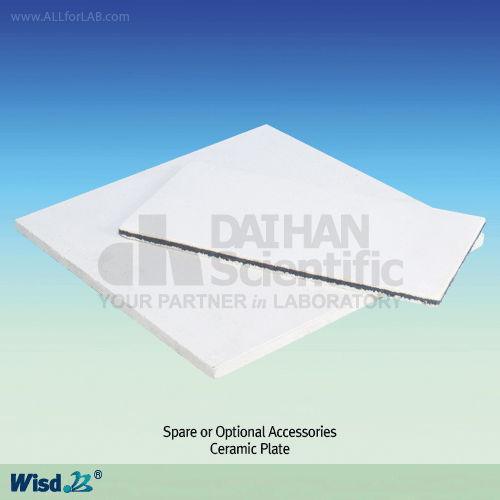

(1) Spare or Optional Plates
DH.WF211.03 Ceramic Fiber Shelf, FS1103 for FH-03 and FHP-03
DH.WF211.05 Ceramic Fiber Shelf, FS1105 for FH-05 and FHP-05
DH.WF211.12 Ceramic Fiber Shelf, FS1112 for FH-12 and FHP-12
DH.WF211.14 Ceramic Fiber Shelf, FS1114 for FH-14 and FHP-14
DH.WF211.27 Ceramic Fiber Shelf, FS1127 for FH-27 and FHP-27
DH.WF211.63 Ceramic Fiber Shelf, FS1163 for FH-63 and FHP-63

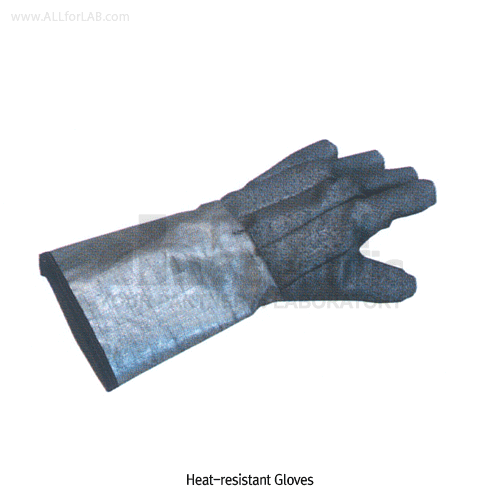

(2) Optional High-temp. Resistant Gloves, 고온용 장갑, 900℃
Flexible & Long Sleeve (긴소매)
NA.GLOVES Gloves , Heat-resistant, 900℃ 내열
* Note ! Validation (IQ, OQ) Service 의 Cat. No.는 제품 Cat. No.의 숫자 앞에‘3’을 추가함. 예 ) DH.WF11.03 →DH.WF311.03
※ 위 제품은 운임비 착불전용상품입니다.
※ 자세한 사항은 PDF파일 참조하시기 바랍니다. |
 |
|
|
|
