* Simplified Hi-Efficiency Freezing System can freezes down to -86¡É
: realize robust and long life time.
* Dual SHFSTM(Simplified Hi-Efficiency Freezing System) can down to
-95¡É and High-stability system can be offered. : If one SHFS fails in
operation, the other SHFS still works and maintains down to -80¡É
* CE Certified
* ¡°PL(Product Liability) Insurance¡±
   : One Hundred Million/Korean Won(¡¬) for Each of Human and an Object

Application & Features
* Simplified Hi-Efficiency Freezing System can freezes down to -86¡É
   : realize robust and long life time.
* Dual SHFSTM(Simplified Hi-Efficiency Freezing System) can down to
   -95¡É and High-stability system can be offered.
   : If one SHFS fails in operation, the other SHFS still works and maintains down to -80¡É
* Automatic Vacuum Releasing System - Easy to re-open the Door.
* Ease-of-use and High Performance Touch-Screen TFT LCD Controller
* Robust & Flexible design of Door Handle
* Easy Monitoring and Control - Eye level Controller
* CFC-free Refrigerants are used
* Use of Block Condenser removes filter and causes of related failure.
* Filter-free Mechanism lowers heat generated by the compressor
* Easy Maintenance and Improved Performance
* High-quality Insulation Panel and Inner Doors ensure defrosting around outer surface.
* Built in Standard Warning and Alarm Functions

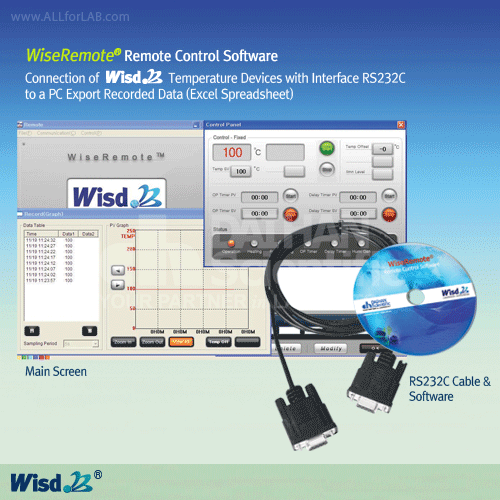

* RS232 Communication Link and a Remote Control Software is supported
* CE Certified
* ¡°PL(Product Liability) Insurance¡±
   : One Hundred Million/Korean Won(¡¬) for Each of Human and an Object

Specification

 ¡Ø ÀÚ¼¼ÇÑ »çÇ×Àº PDFÆÄÀÏ ÂüÁ¶ÇϽñ⠹ٶø´Ï´Ù.

Ordering Information
Upright Type, Dual Simplified Hi-Efficiency Freezing System

DH.WUF01300 Ultra Low Temp. Freezer, Upright, WUF-D300, -95¡É~-65¡É,308 Lit.
DH.WUF01400 Ultra Low Temp. Freezer, Upright, WUF-D400, -95¡É~-65¡É,393 Lit.
DH.WUF01500 Ultra Low Temp. Freezer, Upright, WUF-D500, -95¡É~-65¡É,503 Lit.
DH.WUF01700 Ultra Low Temp. Freezer, Upright, WUF-D700, -86¡É~-65¡É,683 Lit.

Optional Accessories

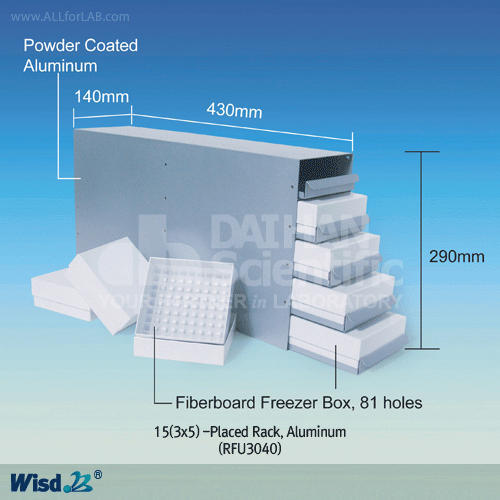

DH.RFU3040 Rack, RFU3040, 15 Places, Aluminum, w140¡¿d430¡¿h290mm, for WUF-(D)300/400

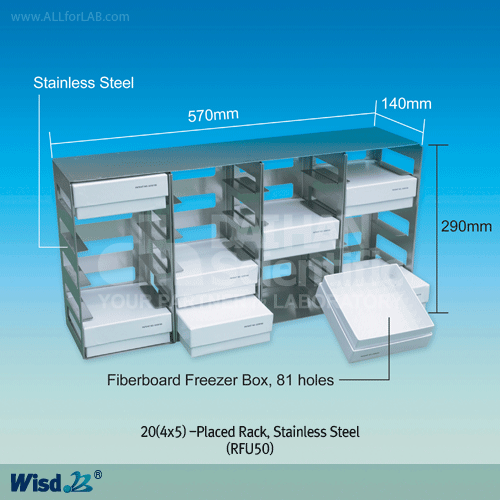

DH.RFU50 Rack, RFU50, 20 Places, Stainless Steel, w570¡¿d140¡¿h290mm, for WUF-(D)500/700
DH.KAUB33080A Fiberboard Freezer Box, UB33-080A, 81holes, w/cover, w132¡¿d132¡¿h52mm
DH.KT622 Temperature Chart Recorder, KT622, with C657 Chart Paper
DH.C657 Chart Paper, C657, 7-day
DH.LCO2B LCO2 Back up System, LCO2B
DH.RWAS Remote Wire/Wireless Alarm System, RWAS

DH.WRCK1300* Refrigerant Charging Tank, RCK1300, for WUF-D300
DH.WRCK1400* Refrigerant Charging Tank, RCK1400, for WUF-D400
DH.WRCK1500* Refrigerant Charging Tank, RCK1500, for WUF-D500
DH.WRCK1700* Refrigerant Charging Tank, RCK1700, for WUF-D700
                           *The Charging Tank is for One Freezing System

DH.WRCK1100 Refrigerant Charging Kit, for all WUF Series (without Charging Tank)
