특징 (Features)
* Modular Design Allows You to Customize for Your Applications:
Up to 20,000ml.
* Chemical, Meterial or Environmental Reaction Processes
in Pressure-Line.
* Various Class or Wide Ranges of Reaction System for Laboratory or
Pilot Plant/Production-Scales.
* Can Be Used with Glass Vessels (up to 20 Lit.).
* Digital PID Control System or PC Control (Software).
* High-Pressure (or -Vacuum, and High-Temperature : to 5800 psig & 500℃.
* 100~4,000ml Basic Vessels in Stainless Steel #316.
But According to Working Condition, You can use Titanium, Hastelloy C276
or Glass-Vessels : up to 20,000ml Vessels.

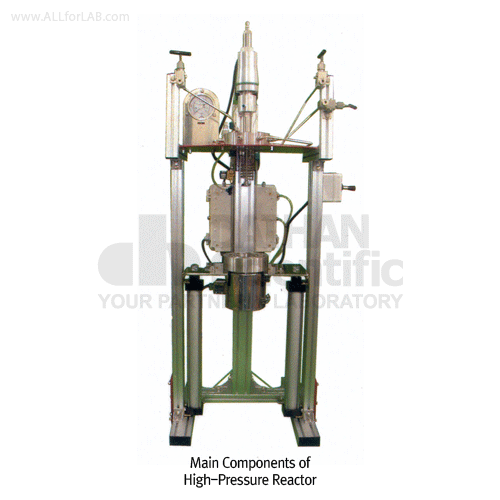

주요 구성 요소 (Main Components)
(1) Digital Agitation System, 교반 장치:
Magnetic Drive With DC (or AC) Motor, and Stirrer Impeller.
(2) Bolted Lid & Internal Parts, 볼트 조임식 카바 & 기능성 내부 장치 :
With Sampling Tube, Cooling Coil, Blow-Pipe Thermowell and Others.
(3) Reactor Vessels, 반응조 용기:
Stainless Steel (#316), Hastelloy C276, Titanium or Glass 재질, Single or
Double Wall.
(4) Heating or Cooling Unit, 가열 or 냉각 장치:
Standard Electric Ceramic Heaters, Heating Mantles, Heating
Blankets/Jackets, Heating Bath, Heating or Cooling Circulators.
(5) Vessel Lifting System, 베셀 상하 이동 장치:
Manual식, Air Cylinder with Toggle Switch
(6) Installation Frame, 반응조 설치가대:
Aluminum Profile Frame/Stand with Caster.

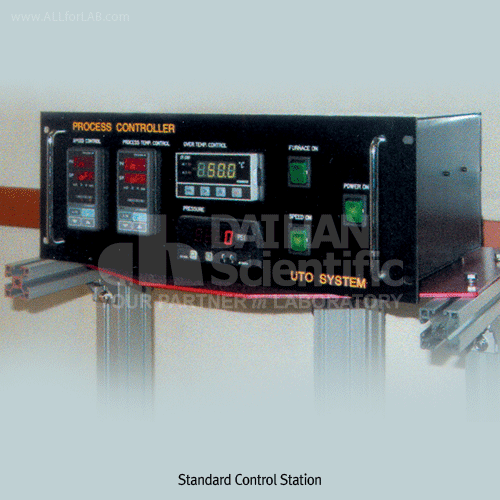

(7) Total Control System Digital PID, 조절 장치:
Speed, Temperature, Pressure, and Power. (Level, Flow도 가능함.)

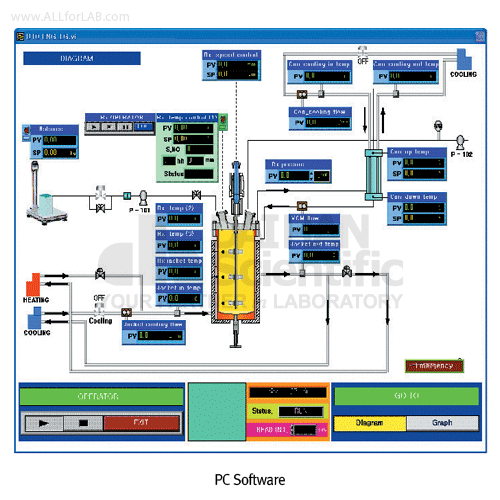

(8) Software with Data Acquisition:
Networking/Monitoring via PC, Controlling, Recording, Storing & Documentation.
(9) Other Accessories:
Optional Recorder, Gas Valves, Drain Valve, Teflon Coating, External Cooling Coil, Explosion Proof,
and etc.
※ Please Note! CUSTOM Reators on Request:
모양 / 규격 등이 고객 주문에 따라 공급되는 반응조임. |
