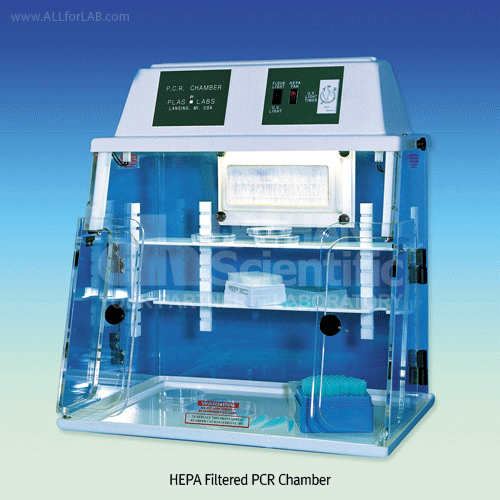

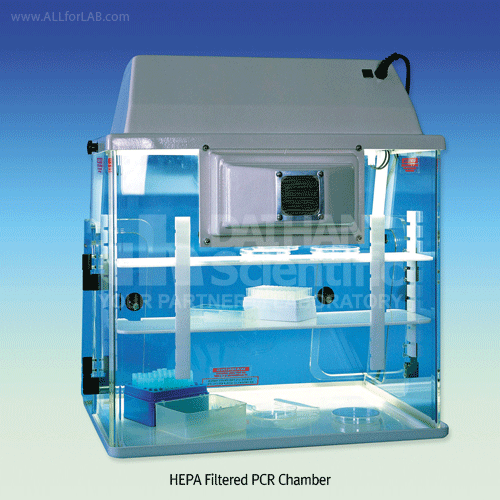

This chamber has been designed to help improve the accuracy of PCR and general Tissue
Culture procedures. The chance for air-borne contamination during DNA sequencing is greatly
reduced.

The front viewing panel is 13§® thick optically clear material. It is extremely effective for
protection against 32P labeled compounds. It is very effective against Beta Rays but not
Gamma rays. Access to the interior of the chamber is gained by pushing the thumb knobs and
lifting off the corner doors. The doors are removable therefore do not take up valuable laboratory
counter workspace.

* Positive Pressure External Fan
* Small HEPA Filter rated at 99.97% efficiency at 0.3 microns
* No tools required for filter change over
* Low fan noise level. Rated at less than 40dBA

±Ô°Ý (Specifications)
* Two bright white acrylic shelves are included (50¡¿23§®) & (7¡¿23§®) one is tooled to store
   pipettors.
* Front panel is l3§® thick for Beta Ray protection
* Side access panels are removable and have thumb knobs
* Domestic electric power requirements are 110-115 Volt, 60 Hz. 220 volt units are available.
* The system has a two (2) Amp circuit breaker.
* Sides and back wall are one piece formed of .375 thick acrylic for long term rigidity, durability, and protection
* Bottom tray has a formed in place spill tray
* Main housing and top are removable for installation of large pieces of research equipment.
* Crated weight is 49.5§¸
* Standard one year warranty
* Dimensions : w609¡¿d457¡¿h711§® (Outer)
                        w597¡¿d432¡¿h533§® (Inner)

ÁÖ¹® (Ordering)
PL.825.PCR.HEPA          Chamber, PCR, with HEPA filter
