* 다양성 용도 :
사용하는 Vials / Tubes의 외경(Φ)과 Rack-hole의 내경(Φ)을 비교해당 Racks를 자유롭게 선택
* 특징 :
- 반영구적인 튼튼한 특수구조의 PP랙, 우수한 내약품 / 내열성, Autoclavable
- 운반 / 보관에 편리한 특수 Handling System
- Sample 식별 / 선택에 이상적인 Vial-Grid “Alphabetical-Numerical Index”
- Highest-Quality / Super-Functions / Best Fashion Design.
- Racks를 다단식으로 중첩해서 쌓아 올릴 수 있는 Corner Part가 있음.
(1) 96 Holes Rack, with Φ 9.5 mm Hole Dia.
for Φ 8 mm Autosampler Shell Vials & Others
WH.985750 Rack, 96-hole, 8홀 × 12열, L 12.5 ×w 18.5 ×h 2.2 ㎝

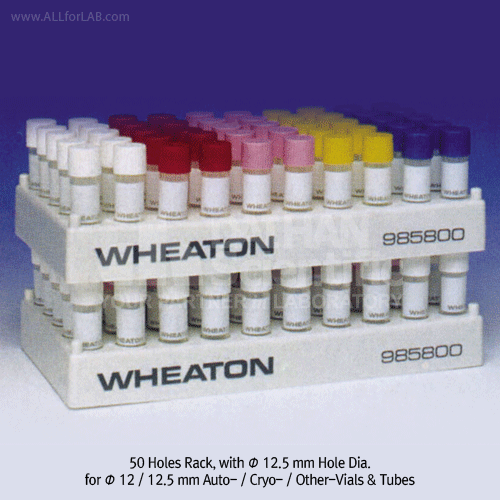

(2) 50 Holes Rack, with Φ 12.5 mm Hole Dia.
for Φ 12 / 12.5 mm Auto- / Cryo- / Other-Vials & Tubes
WH.985800 Rack, 50-hole, 5홀 × 10열, L 19 ×w 10 ×h 2.2 ㎝

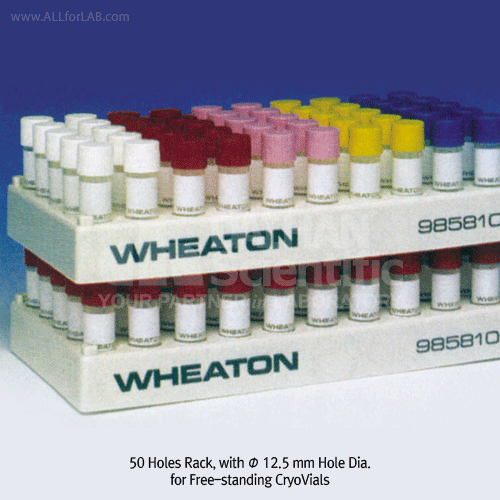

(3) 50 Holes Rack, with Φ 12.5 mm Hole Dia.
for Free-standing CryoVials
WH.985810 Rack, 50-hole, 5홀 × 10열, L 19 ×w 10 ×h 2.2 ㎝

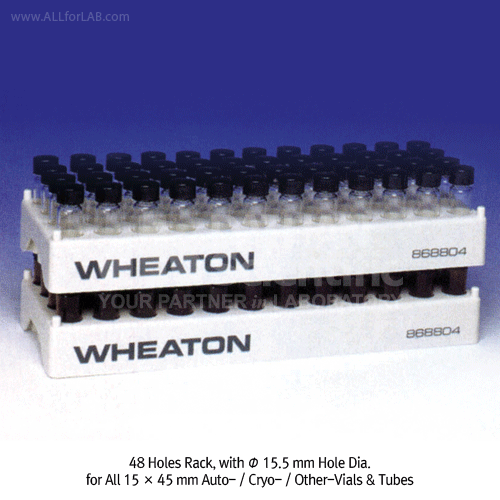

(4) 48 Holes Rack, with Φ 15.5 mm Hole Dia.
for All 15 × 45 mm Auto- / Cryo- / Other-Vials & Tubes
WH.868804 Rack, 48-hole, 4홀 × 12열, L 9.4 ×w 26.6 ×h 2.8 ㎝

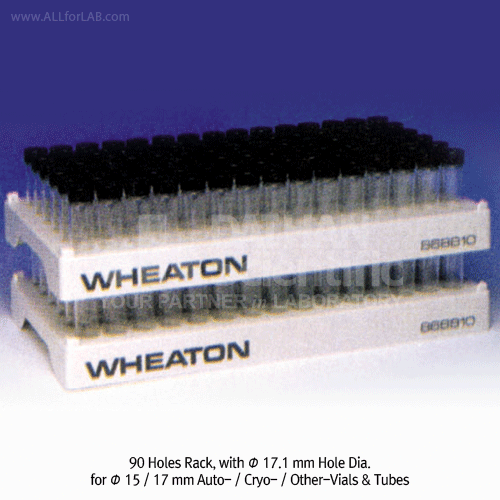

(5) 90 Holes Rack, with Φ 17.1 mm Hole Dia.
for Φ 15 / 17 mm Auto- / Cryo- / Other-Vials & Tubes
WH.868810 Rack, 90-hole, 6홀 × 15열, L 17 ×w 32 ×h 3 ㎝
(6) 36 Holes Rack, with Φ 23.1 mm Hole Dia.
for“ Headspace”Vials & General Vials & Tubes
WH.868805 Rack, 36-hole, 3홀 × 12열, L 9.1 ×w 32.2 ×h 2.8 ㎝
(7) 50 Holes Rack, with Φ 28.1 mm Hole Dia.
for 20 ml Scintillation / 40 ml EPA / Other-Vials & Tubes
WH.868806 Rack, 50-hole, 5홀 × 10열, L 17 ×w 32 ×h 3 ㎝
(8) 50 Holes Rack, with Φ 30 mm Hole Dia.
for Vial / Bottle / Others
WH.868808 Rack, 50-hole, 5홀 × 10열, L 17 ×w 33.7 ×h 3 ㎝
|
|
|
